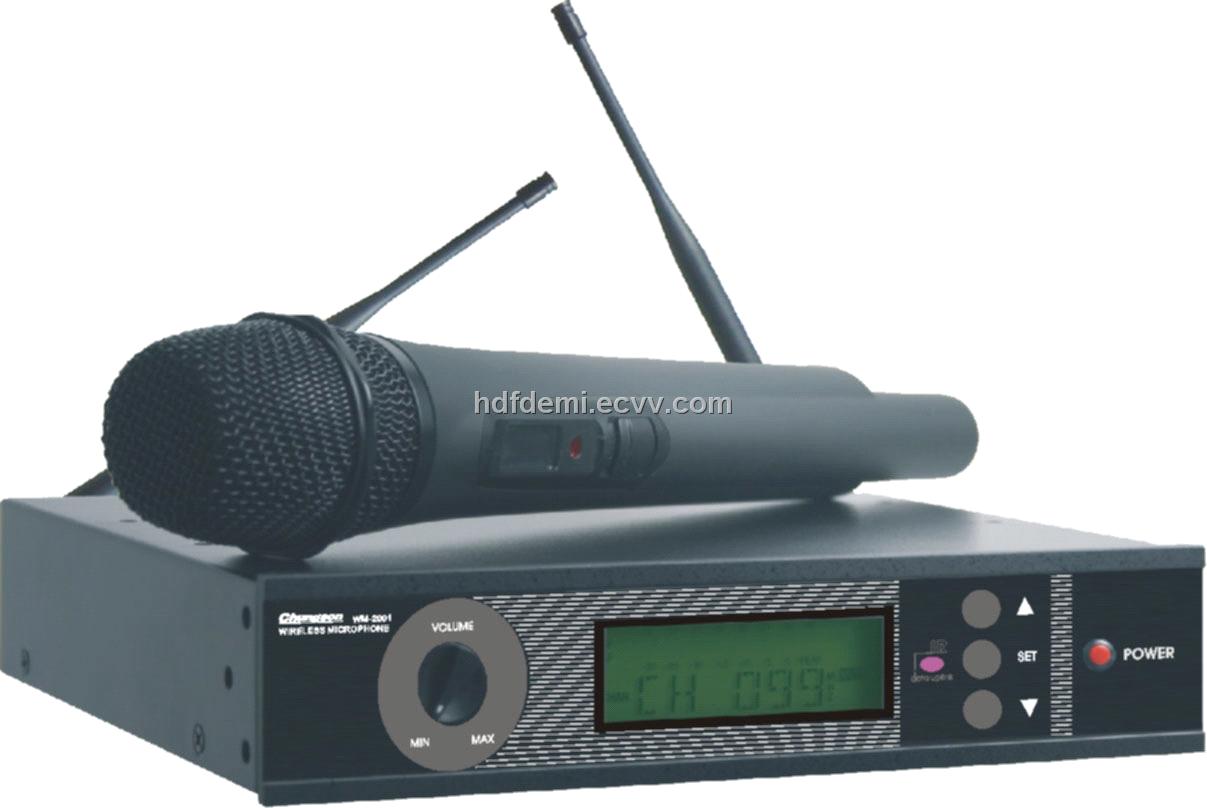

UHF Wireless Microphone WM-2001

System Specifications Frequency Range:7A 690-715 MHz;7C 740-765 MHz;8A 785-810 MHz;
Switchable Frequencies:200
Modulation:Wideband
FM Peak Deviation:±60KHZ
Frequency Response:70HZ-18KHZ
3dB Temperature Range:-10-55°C
Frequency Stability:±0.005%

Receiver Specifications:
Receiving Method:Diversity Sensitivity:6dBμV at S/N>80dB
Image Rejection:≥80dB
S/N Ratio:105 dB THD :<0.5% @ 1KHz IF :110MHZ,10.7MHZ
Audio Outputs :XLR-3M 1V/600 6.3MMTRS 0.5V/5KR Operation Voltage :DC 11-16V
Current Drain :160mA
