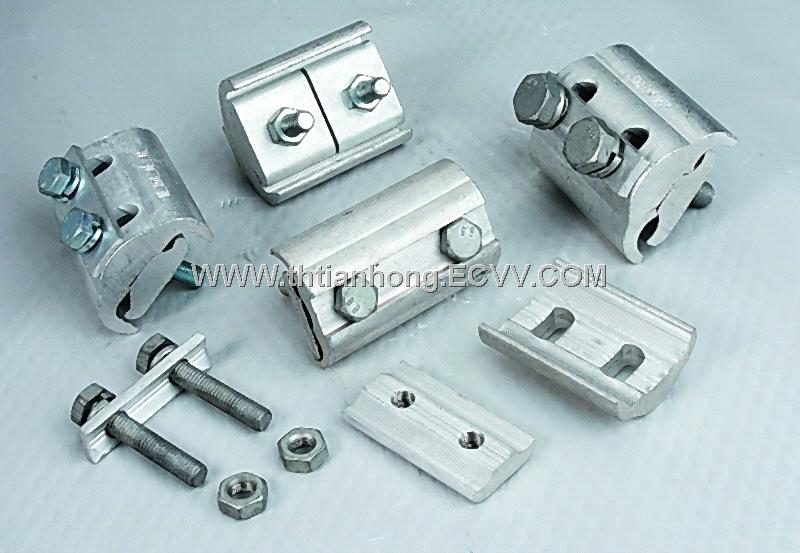

AlpgAluminum Parallel Groove Clamp

AlpgAluminum Parallel Groove Clamp
  • Post Date: 4/8/2008
  • Expiry Date: 4/3/2009
AlpgAluminum Parallel Groove Clamp

Detailed Product Description

For tap-off connection of aluminum alloy conductors according to DIN 48201 and ACSR conductors according to DIN48204
Body: high strength, corrosion-resistant, aluminum alloy (AL99.5)
Bolts: DIN 933, steel 8, 8, hot-dip galvanized
Pressure pad: aluminum alloy
Spring washers: DIN 1 27, steel, hot-dip galvanized
Conical washers (according to order): DIN 6796, corrosion-protected
Recommended torque moments: 1/4" NF: 9.5Nm, M8: 23Nm, M10:46Nm, stainless steel A2
Bolts can be made according to orders
Pressure pad and spring washers only
