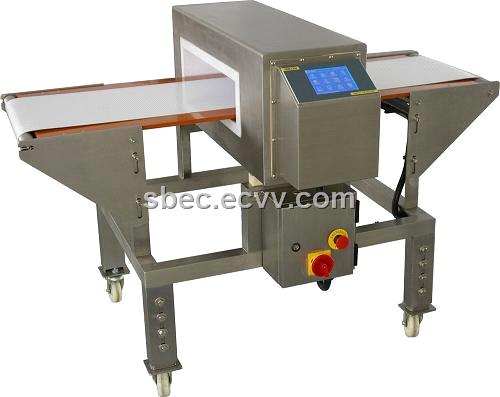

Metal Detector for Industry JS-300

FEATURES

1. Hi sensitivity and stability

2. Intelligent product study mode, can fit for more types of product.

3. Detecting sensitivity and phase angle dividual adjustment,two frequency optional.
4. Use LCD display and touch-key intergrated panel,friendly interface and easy to operation.
5. Based on digital signal processing technology ,Hi accuracy detection.

6. IP65 product degree and strong stainless steel frame



PURPOSE

     Designed for food industrial and pharmaceutical industrial use.

     Also can fit for detecting the chemical products, rubber products.



SPECIFICATIONS

 Model： JS-300(120mm)
Detection Method： Balanced Coil
Detection Ability： Fe￠0.8mm SUS￠1.5mm Non-Fe￠0.9mm
 Detection Adjustment： Sensitive(1%-100%) Phase Angle(0°-180°)Adjustable

 Tunnel Width： 300mm
 Alarm Method： Buzzer、LED
 Belt Speed： 18-36m/min（Adjustable）
 Power Source： 220V /380V  50-60HZ
 Rated Output： Appr.200W
Dimension： 1500mm(L)*500mm(W)*750±100mm(H)
Weight： Appr.160Kg



JS-300 SERIES
