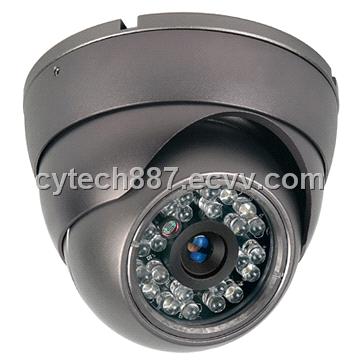

IR Dome Camera, 420 TVL Sony CCD,CCTV camera

Description
1.IMAGE SENSOR: 1/3" Sony Super HAD CCD
2.DSP: Sony
3.CCD TOTAL PIXELS: NTSC: 537 (H) x 505 (V) PAL: 537 (H)x597 (V) 4.SCANNING SYSTEM: NTSC: 525 lines, 60 fields/sec PAL: 625 lines, 50 fields/sec
5.SYNC SYSTEM: Internal
6.MINIMUM ILLUMINATION: 0.5 Lux F1.2 0 Lux(IR ON) 7.RESOLUTION: 420 TV Line
8.WHITE BALANCE: ATW / AWC switchable
9.GAIN CONTROL: AGC ON / OFF switchable
10.S/N RATIO: 48dB (AGC OFF)
11.ELECTRONIC SHUTTER: NTSC: 1/60~1/120,000 sec. PAL: 1/50~1/120,000 sec.
12.B.L.C. FUNCTION: ON/OFF switchable

13.VIDEO OUTPUT: Composite 1.0V p-p at 75 ohm
14.GAMMA CORRECTION:0.45
15.LENS:Board Lens mount
16.IR LED:(850nm, 15o) x 9 LEDs (850nm, 45o) x 9 LEDs
17.VISIBLE DISTANCE AT:20m (Lens 12mm)
18.OPERATION TEMPERATURE:-10oC TO 50oC
19.OPERATIONAL HUMIDITY:within 85%RH
20.POWER SUPPLY:DC12V?V / 350mA
21.DIMENSIONS(φXH):108X83
22.Weight-Net:280g
