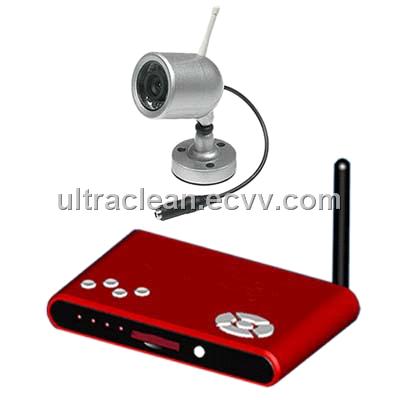

Product Name: DVR Monitor

Product Name: DVR Monitor
  • Post Date: 10/9/2008
  • Expiry Date: 10/4/2009
Product Name: DVR Monitor

Detailed Product Description

Product Name: DVR MonitorModel No.: DVR-1 Product detail: 2.4GHz Wireless Video Recorder. 4 channel operation. Auto motion detection and recording. Support SD card 2G. 420TV line 1/4 sharp CCD camera. Camera Specification Frequency: ISM 2,400 - 2,483MHz Imaging Sensor: 1/4 inch OMNIVISION Color CMOS Horizontal Resolution: 380TV Line CCD Total Pixels: 628 x 582 (PAL) / 510 x 492 (NTSC) View Angles: 62 degrees Minimum Illumination: 1.0Lux / F1.5 Gain Control: Automatic Transmission Power: 10mW Consumption Current: 80 mA Modulation Mode: FM Bandwidth: 18M Operating Range: 30m/100m (Obstructed / Unobstructed) Power: DC 8V Operating Temperature: -10oC ~ +40oC Operating Humidity: 85%RH Dimension(WxLxH): Weight: Receiver Specification Frequency: ISM 2,400 - 2,483MHz Antenna: Omni-directional antenna Channel: 1-4 (Flip-type switch) Intermediate Frequency: 480MHz Frequency Stabilization: +/- 100KHz Work current: 220mA Photo format: JPEG Photo pixel: 640x480 Maximum capabillty : 2Gb SD Card Operating Temperature: -10oC ~ +40oC Receiving Sensitivity: ≦-85dBm Video Output: 1Vp-p@75 ohm, S/N>38dB Audio Output: 1Vp-p@600 ohm Power:DC 9V Video record time: 10s/pc Video format: AVI Operating Humidity: 85%RH Dimension(WxLxH): Weight: 300 Packing Gift Box Size : 26x18x7.5cm Carton Box Size: cm 1 gift box : 1 Unit 1 Carton Box :10 sets Gross Weight : 7kg/ carton Net weight :6 kg/Carton
