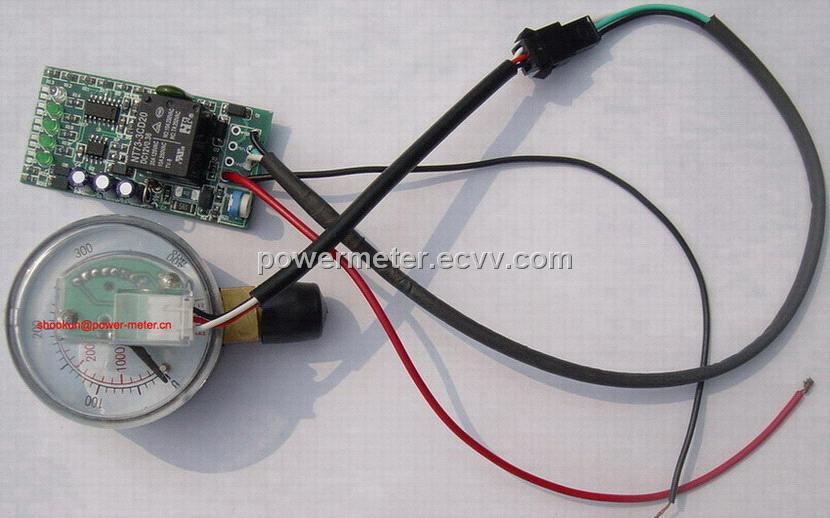

CNG Manometer

Post Date: 7/24/2008
Expiry Date: 7/19/2009
FOB Price: USD2.65-2.85Fob Shanghai

Detailed Product Description

Sensor pressure Gauge
Case material: Black Steel case and PC sensor cover;
Window: Polycarbonate;
Size: 2"(50mm), other size available;
Bottom Connection: Brass; Brass internal.
Thread Size: 1/4" BSP;
Thread Style: PF, NPT, PT, BSPT/ZG;
Bourdon Tube: C form or Coiled shape;
Dial and pointer: Aluminum/plastic;
Accuracy Class: 2.5%/1.6%;
Pressure Range: 0~400 bar.

Sensor parameter:

Measuring: 0~200bar
Supply voltage: 12 v DC;
40 bar+/-10 bar: 2.5 v+/-1v;
65 bar+/-10 bar: 5.0 v +/-1v;
100 bar+/-10 bar: 7.5 v+/-1v;
140 bar+/-10 bar: 11.3 v+/-1v;
OR:
40 bar+/-10 bar: 11.3 v+/-1v;
65 bar+/-10 bar: 7.5 v+/-1v;
100 bar+/-10 bar: 5.0 v +/-1v;
140 bar+/-10 bar: 2.5 v+/-1v;

We can make series of gauges for Gas and Petroleum lines with diameter from 1" to 8". Dry type and oil filled type are both available.Any question or inquiry, you are welcome to contact us at your earlier convenience.
