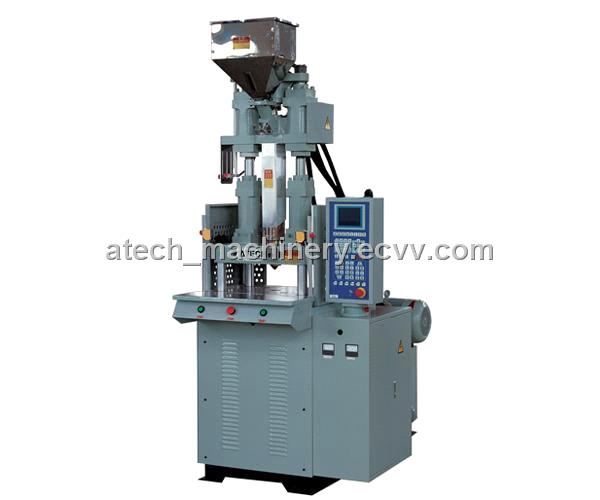

Vertical Injection Moulding Machine

Detailed Product Description

 Model           Units AT-400
Injection System Screw Diameter mm Ф32 Ф36
Injection Pressure  Kg/cm2 1662 1313
Theoretical Shot volume cm3 96 122
（P.S) Max. Shot Weight g/Oz 86/3.0 109/3.8
Injection Rate cm3/sec 58 73
Temperature Control ZONE 4
Material Hoppper Capacity L 20
Clamping System Clamping Force  T 40
Opening Force T 8.3
Distance Between Tie Bare  mm 415*255
The Biggest  Contain Mold Space mm 400*250
Min Mold Height  mm 150
Opening Stroke  mm 200
Max. Open Daylight  mm 350
Nozzle Center Height mm -
Nozzle Center Distance  mm -
Ejector Force  T 1.3
Ejector stroke  mm 40
Hydraulic System Max. Hydaulic Pressure  Kg/cm2 140
Pump Output  L 160
Pump Motor Power  Kw 5.5
Barrel Heating Power  Kw 4.1
Total Wattage  Kw 9.6
Slipform System Slide Plater Size  mm 840*390
Slide Plater Stroke   mm 420
Round Set Diameter mm -
Others Machine Weight      T 1.3 1.9
Machine Dimensions(LxWxH)  m  1.8*1.2*2.6 2.1*1.1*2.6
