We are the manufacturer and exporter of non-pressure series solar water heaters, pressurized series solar water heater, solar collector U pipe with solar keymark, solar collector heat pipe, All-glass evacuated solar collector tubes. We are a hi-tech enterprise which is specialized in research and application of solar energy and manufacture of solar water heaters and solar collector. We develop split pressurized solar water heater, villa-use hot water centre suitable for high-story building. Our varied series solar water heaters can meet the requirements of different clients and can supply OEM service for our customer. Our company is No.1 in china solar industry export since 2004.
----------------------------------

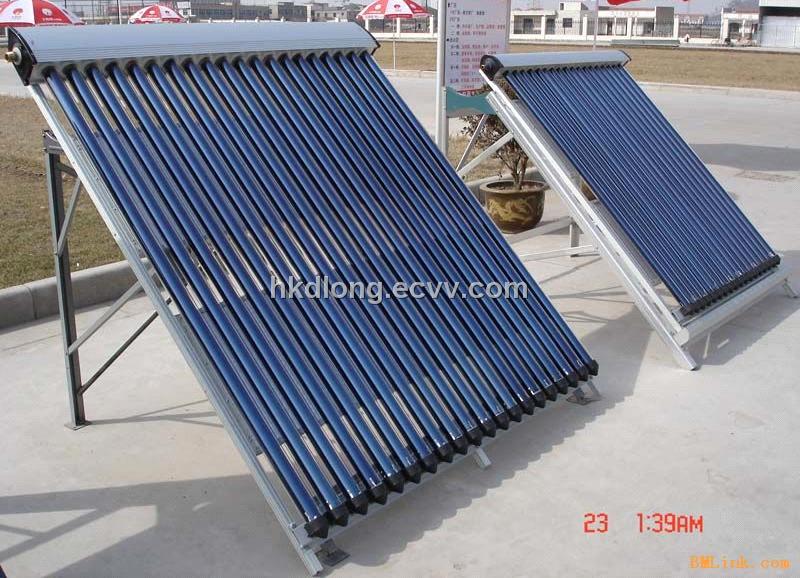

Solar vacuum tube collector heatpipe with solar keymark(EN12975)
This product is the Solar vacuum tube collector heatpipe.
The characteristic of this Solar vacuum tube collector heatpipe:
1) The water is heated by the heat pipe rapidly.
2) There is no water in the vacuum tube,so the tube will not break in the winter. 3) It can be combined with the architecture perfectly.
4) It can be combined with existing pipeline.
5) It will be affected by the local water quality,it doesn't suit hard water.
6) It can be still operate in the event of occasional tube breakages.
The material of this heat pipe collector:
1) Outer tank:Coated galvanized steel--0.8mm;Alnico--1.5mm.
2) Mabifold:?38mm thickness 2mm.
The details of this Solar vacuum tube collector heatpipe(solar keymark certificate)
|
Type |
Area( ㎡ ) |
Vacuum tube Qty(pcs) |
Length/Width/Height(mm) |
Gross wet(kg) |
|
TZ58/1800-10R |
1.31 |
10 |
2020 × 995 × 155 |
39.9 |
|
TZ58/1800-15R |
1.97 |
15 |
2020 × 1410 × 155 |
58.3 |
|
TZ58/1800-20R |
2.62 |
20 |
2020 ×1825 ×155 |
77.1 |
|
TZ58/1800-25R |
3.49 |
25 |
2020 ×2240 ×155 |
96.1 |
|
TZ58/1800-30R |
3.93 |
30 |
2020 ×2655 ×155 |
114.1 |
|
Remark:vacuum tube size: ?58 × 1800 |
The Principle of this Solar vacuum tube collector heatpipe with solar keymark(EN12975) can get from us.
The special advantages of solar thermal collector heat pipe:
1. New manifold, more stronger
2. The frame can be adjusted
3. Easy installation
4. Tail stock support is made of Alnico
