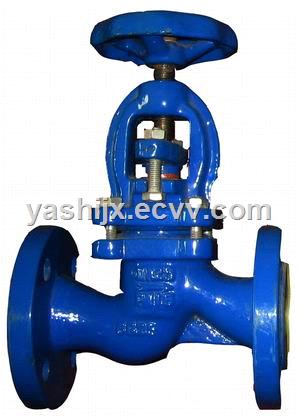

Globe valve
Detailed Product Description
Available Medium:H-water.Steam.Petroleum T-Water.Steam
Working Temperature:H/T<=200 degree centigrade
Flange:DIN2533
Face to face dimensions:Din3202F1
J41H-16 J41T-16
Body.Bonnet: Gray cast iron Gray cast iron
Seal ring: Stainless steel Cast Brass
Disc: Gray castIron+StainlessSteel Gray castIron+Brass
Stem: Stainless steel Stainless steel
Stem nut: Cast Brass Cast Brass
Gasket: Graphite Graphite
Packing: Graphite Graphite
DIMENSIONS
DN L kg
15 130 3.32
20 150 3.8
25 160 5.07
32 180 8
40 200 9.39
50 230 11.40
65 290 18
80 310 30.7
100 350 40
125 400 62
150 480 91
200 600 152.2
|
