Identify the type of materials in the area:
Class A: SOLIDS such as paper, wood, plastic etc;
Class B: FLAMMABLE LIQUIDS such as paraffin, petrol, oil etc;
Class C: FLAMMABLE GASES such as propane, butane, methane etc;
Class D: METALS such as aluminium, magnesium, titanium etc;
Class E: Fires involving ELECTRICAL APPARATUS;
Class F: Cooking OIL & FAT etc;

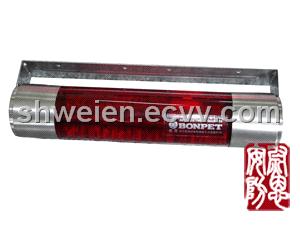

Auto Fire Extinguisher
The Automatic Fire Extinguisher is widely used in office building, shopping square, dwelling house, airport, plant, warehouse, hotel, lab, restaurant, recreation place, hospital and so on.
Characteristic:
1.Multifunction: putting out fire by boiloff the liquid;
2.Not pollute the environment;
3.The suitable range: A, B, C type fire,and electronic equipment:
4.The period of validity: ten years, no need to maintain;
5.No harm to health:
6.Convenience to use;
7.Special appearance;
Specifications:
1.One set Including: 1 Glass bottle filled with the liquid that could put out the fire; 2 stainless steel sleeves; 1 stainless steel bracket; 3 screws for fixing.
2.Size: 307*88*62 mm;
3.Weight: 1.07 Kg;
4.Cubage: 600 cc;
5.Protection Area: 8 M2 , if the height is higher than 3 metres, the area is 8M3.
6.Setup height: ≤1.8M is better.
7.The pressure inside to burst out: 7.5±0.5kg/CM2
8.Startup Temperature: About 85℃
Using Methods:
1.Automaticly.
When the fire breaks out, the temperature in the house increases. At this time, the liquid’s temperature in the Bonpet automatic fire extinguisher will be increased. When the temperature is higher than 85℃, the glass bottle will be exploded.
2.Toss the Bonpet into the fire.
When the place where the fire break out is far away from the Bonpet, we could toss the Bonpet above or near the fire to the wall or some other hard places which can crash out the glass let the liquid out to put off the fire.
3.Using water to dilute the Bonpet.
When the fire is too large to control, we could break the Bonpet and use 8L~~10L water to dilute it, and then sprinkling the liquid to the burning substances. Please notice that this method is not suitable to the electronic equipment.
|
