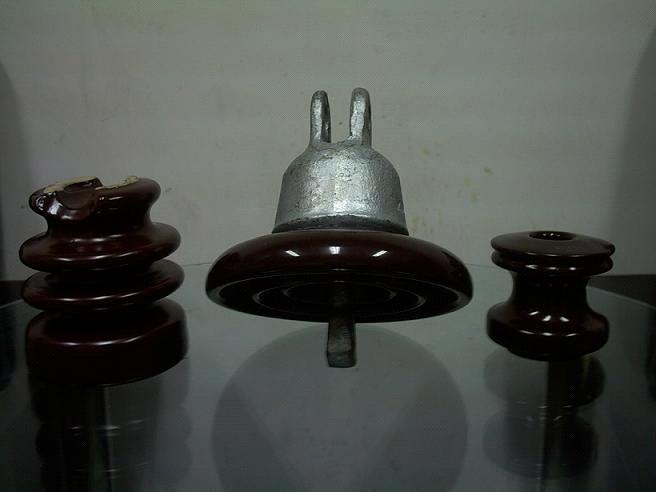

Porcelain insulator,pin insulator,stay insulator,disc insulator

We can supply:
Suspension insulator upto 300KN(mechanical strength) in both fog type & normal type according to IEC, ANSI standards.

Pin type insulators up to 33kV, 10 kN with Max. Creepage 900mm.

Line post insulator up to 33 kV 20 kN

Station post insulator: Including ANSI TR serial station post insulator
And IEC station post insulator up to 220 KV.

And other porcelian insulators such as transformer bushing, strain insulator etc.

the sample introduce as follows:

Product Name:HY-1019 Type Pin Insulators For Low & Medium Voltage Lines(ANSI)
Type:HY-1020
Main technical parameter:
Main Dimension in (mm)
D(MAX):191; H:146;D;89

Leakage  Distance(mm):330
Min Pin Length:152
Cantilever Strength(kN):11
One Minute Wet Power Frequency Withsand Voltage(kV):95
One Minute Dry Power Frequency Withsand Voltage(kV):60
Critical impulse Postitive (kV):150
Critical impulse Negative (kV):190
Power Frequency Puncture Voltage(kV):130
Test Voltage To Ground(kV);15
Max RIV at 1MHz(uV):8000/100
