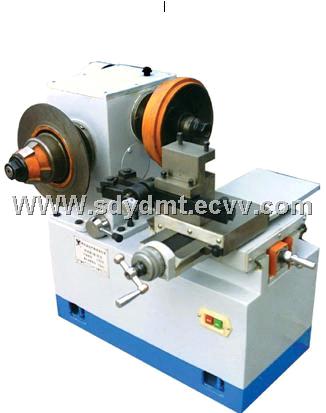

BRAKE DRUM/DISC LATHE C9335

BRAKE DRUM/DISC LATHE MODEL C9335 MAIN USES Model C9335 is suitable for processing the brake drum and plate of micro-automobiles. APPLICABILITY C9335 is accompanied with accessories which are used for the brake drum and plate of partial types of homemade cars.

Main Specifications

Range of Processing Diameter Brake Drum:   180-350 mm

                             Disc Rotor:  350 mm

Max travel of tool:                       100 mm

Spindle Speed:                             90 r/min

Feed:                                      0.15 mm/r

Dimensions (L*w*H):                         770*620*720 mm

Packing Size (L*W*H):                       800*900*850 mm

Weight of Machine (N.W/G.W):               200/230 kg
