Product Specifications:

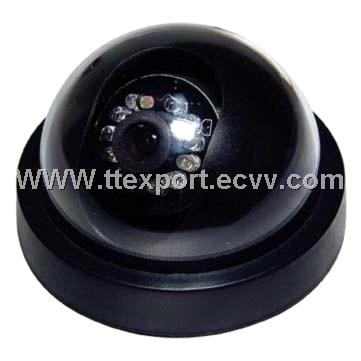

Model TT-GSSO52C
Image Sensor Color 1/3 SONY SUPER HAD CCD
Horizontal Resolution 520 TV Lines
TV system PAL/ NTSC
Pixels PAL ( H X V ) : 500 X 582 PAL ( H: 15.625kHz, V: 50Hz)
NTSC ( H X V ) : 510 X 492 NTSC ( H: 15.734kHz, V: 60Hz)
Sync System Internal Synchronization
AGC Auto
BLC Auto
AWB Auto
Min illumination 0.2Lux/F1.2 0 Lux with IR on
IR-LEDS 12 LEDS
IR distance 15m
Video Output BNC 1.0Vp-p 75ohm
S/N Ratio >48dB(AGC Off)
Electronic Shutter Time PAL = 1/50 - 1/100,000 seconds
NTSC = 1/60 - 1/100,000 seconds
Lens 3.6mm
Power supply 12V DC
Dimension 112 x118mm
Operation Temperature -10 to 50 deg. C (Humidity: 95% max)
Storage Temperature -20 to 60 deg. C (Humidity: 95% max)
