SMART
DIGITAL PORTABLE POWER USERS
MANUAL
MODEL：G301

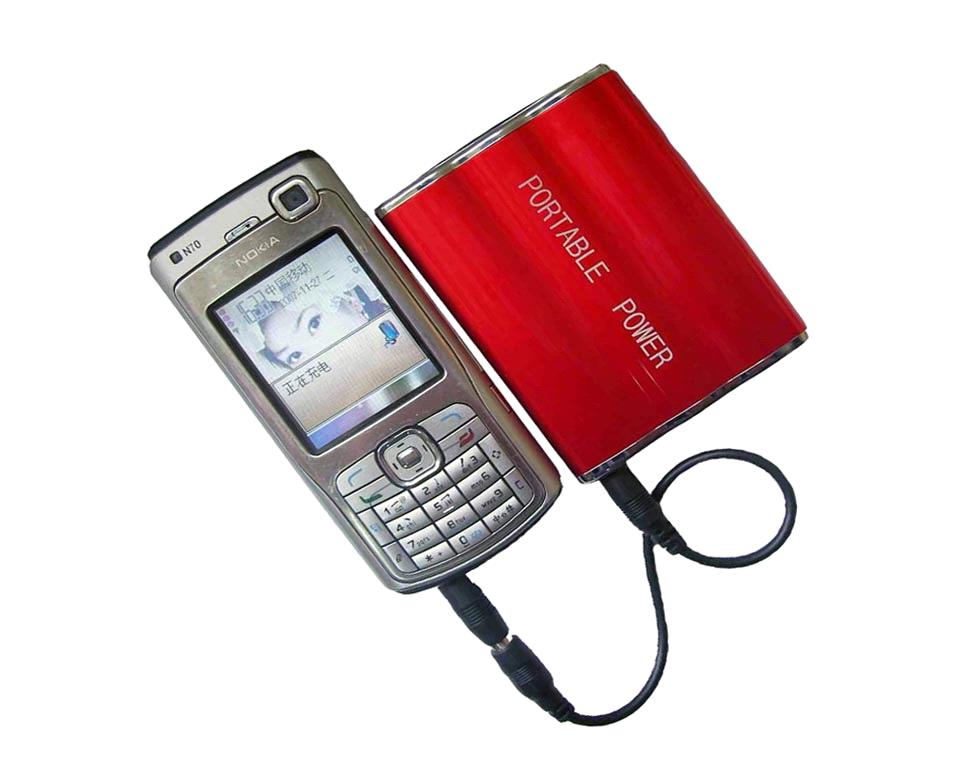

This
product is a multi-function smart digital portable power supply. Use American
high efficiency step up IC,own smart voltage adjust technology. Automatic
identify discharge voltage and current. Very strong safety protection. Exquisite
and stylish Aluminum alloy case. High capacity built in polymer Li-ion battery.
You can charge your mobile phone,digital camera,PDA,PSP,MP3,MP4,IPOD,DV and
other digital products anytime and anywhere.
HOW TO
USE
Please
follow these steps
1. Please
recharge the portable power supply before
use
Plug the AC
adapter into outlet,then connect it to portable power supply USB socket. The
charge indicate LED is bright while charging and it will change to flash when
the battery is fullThe recharge time is about 3
hours.
2. Connect
the connector adapter to extended cable and the other side of extended cable
connect to portable power supply DC OUT
socket.
3. Connect
the connector adapter to mobile phone or other digital
products.
4. Now it
is charging. You can use your digital products while
charging.
5. If the
portable power supply can not work normally in the instance that the connector
adapter and all connecters are right,please add the current controller which
come with the portable power supply between extended cable and connector
adapter
6. Built in
battery electric energy indicator
Press
button MODE one time,the 3 indicator LEDgreen color will show the built in
battery electric energy. The electric energy is empty when no LED be bright; The
electric energy is 30% when one LED be bright; The electric energy is 70% when
two LED be bright; And the electric energy is full when three LED be
bright.
7. Select
charge voltage
This
product provide 3 kinds of output voltage to suit different digital
products.
Press the button
MODE
One
timeelectric energy indicatorgreen color LED indicator
;
Two
timesselect 5.5V(5.5V red color indicator LED be bright),fits for the product
its charge voltage under 5.5V;
Three
timesselect 9V(9V red color indicator LED be bright),fits for the product its
charge voltage between 5.5V and 9V;
Four
timesselect 12V(12V red color indicator LED be bright),fits for the product its
charge voltage between 9V and 12V.
Five
timescut off.
PRODUCT
PERFORMANCE
1. Smart
charge functionStage charge,prolong battery work
life
2.
Temperature compensator function,heat adjust and heat cut off
function
3. PWM
Pulse control constant voltage
4. Smart
protection functionover charge,over discharge,over load,reverse,short
circuit,lightning proof
5. 3 step
voltage adjust to comply with different digital
products
6. LED
indicate built in battery electric energy
PRODUCT
SPECIFICATION
1. Built-in
battery3.7V,3000mAh high capacity polymer Li-ion
battery
2. Output
voltage5.5V / 9V / 12V
3. Output
current1800mA/ 1500mA/ 1000mA
4. Full
recharge time(AC adaptor)3-4 hours
5. Work
time(After full recharge)3-5 hours
6. Work
liftno less than 500 cycles
7. Work
temperature-30 ~ 50
8.
Dimension86 X 69 X 17 MM
9.
Weight112g
FITS
FOR
Mobile
phone
Digital
camera
PDA
PSP
Mp3
Mp4
IPOD
DV
ANNOUNCEMENT
1. When the
charge indicator LED becomes to flash,please cut off the AC power in
time.
2. Please
dont use the connector adapter not matching the digital product to charge your
digital products.
|
