Features:

? High speed USB 2.0 interface.
? Wide ranges of adjustable magnification from10X to 200X.
? Viewing and capture the magnified image of your specimens right on your computer
screen with VGA (640x480) or SXGA (1280x1024) resolution.
? Active pixel technology for sharp image and accurate color reproduction.
? The build-in 6 White-light LED and adjustable illumination ensure the magnified images are clear and bright.
? Auto exposure, auto gain control and auto white balance for optimum image.
? Software controllable parameters (resolution, color, brightness, saturation).
? High quality lens for true to life undistorted color image.
? Bus powered with low power consumption – ideal for portable equipment.

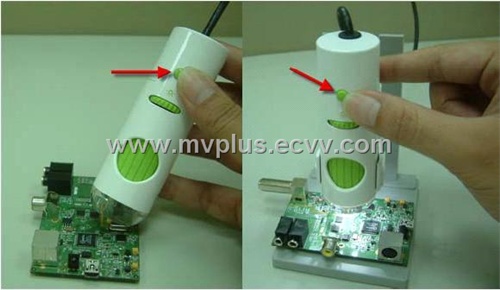

? Hardware snap button.
? UVC for use in Windows XP SP2 or above.

Specifications:

? Image Sensor: 1/4” Color CMOS image sensor
? Effective Pixels: 1280 (H) x 1024 (V) pixels
? Signal Output: Serial data for USB standard compliant 2.0
? Light Control: Automatic Gain Control (AGC)
? Magnification: 10X~ 200X
? Snap Shot Mode: Hardware controllable
? Power Source: 5VDC, 110mA (AVG.) through USB port
? O/S: Windows XP SP2 and VISTA

System Requirement:

? Pentium 4 Class CPU
? 128 MB of system RAM
? One USB 2.0 port or above
? VGA system with at least 16bit color support
? UVC: Windows XP SP2 or above

Applications:

? Home: Examine head scalp, teeth, or see the skin condition.
? Education: Educational & Scientific purpose as an electronic microscope. Students and teacherscan observe objects, materials and insects on monitor immediately with 10~200 magnification in practice class.
? Electronic components inspection.
? Jewelry and paper money inspection.
? Textile: Fiber inspection.
? Visual Assistance, Printing inspection.
