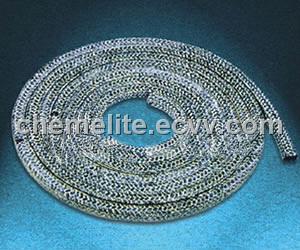

Aiflon graphitized carbon fiber packing set (2100G) is braided from orlon and impregnated with PTFE latex containing graphite particles. Compared with traditional carbon fiber packing set, it isnt brickle, so it is suitable for the condition of higher linear velocity. As the carbon fiber has higher strength and good heat exchange, PTFE and graphite have excellent lubricating performance, this packing set wont wear shaft and can be used for long term.

Equipment: universal packing set

Industry: It is suitable for dynamic and static sealing, mostly used for centrifugal pump, piston pump, blender, mixing machine and pipeline, valves; besides, it is also recommended to used in petroleum equipment, power supply plant, chemical industry, steel plant and so on.

Medium: It is suitable for weak acid, weak alkaline and the medium containing few solid particles.

Packing: 5Kg/case

Specification: temperature: 280°C; PH: 2~12; linear velocity: 20m/s; pressure rotary pump: 25bar; reciprocating pump: 100bar; valve: 200bar; density (g/cm3): 1.1-1.3;
