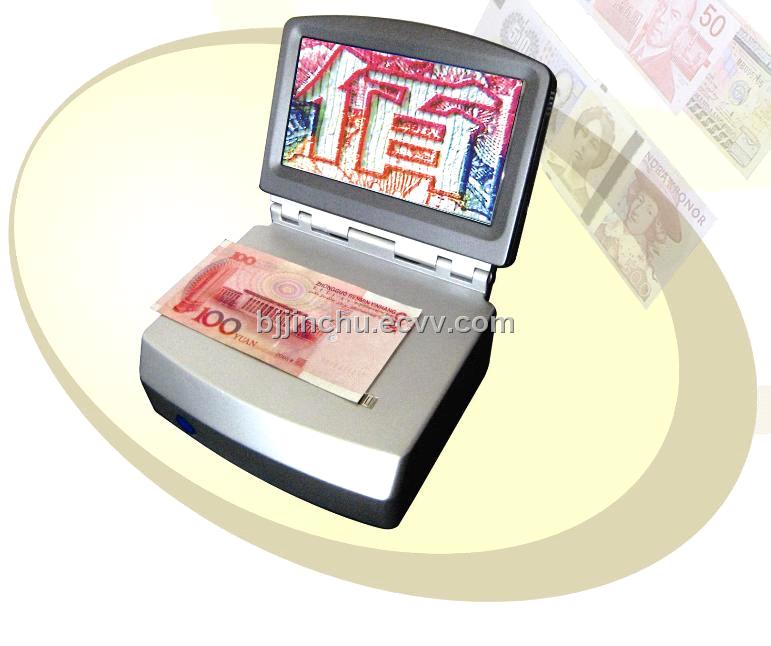

This Folding Money Detector 9620 features multi spectral analysis and magnetism detection on suspected banknotes, bills, etc. Design of flip on/off cover has dramatically saved the space this detector takes, which makes it easy to carry and use everywhere.
SEVEN-INCH screen display providing a 16:9 observation image, together with as many as SEVEN lightings of white, IR, UV, white lateral, IR lateral, backlight and a special "blink", all assures comfortable and pleasant experience of accurate and clear visualizing control on banknotes. You will feel easy and safe to use 9620 for detection of:
Intaglio Printings --- Portrait, name of bank, raised print, tactile marks, denomination, etc.
Relief Printings --- Serial number, seal, etc.
Fluorescent Ink Properties --- Fluorescent numbers, fibers, seal, etc.
Infrared --- IR absorptive ink
See-through Elements --- Watermark, see-through pattern
Special "M" Elements --- *For certain banknotes only
Magnetism detection is available thanks to high sensitivity magnetic scanner on 9620. An additional SMA coaxial video interface is also provided for possible applications of video input/output.
9620 is a reasonable choice for businesses including banks, law enforcement, independent retailers, etc.
Technical Specifications
Image: Color and IR
Display: 7" LED
Lighting: 7 types (cycle in a sequence of white, IR, UV, white lateral, IR lateral, backlight and a special "blink")
Power Input: DC12V φ5
Power Consumption: 9W
Working Condition:
Temperature: 5 — 40
Relative Humidity: ≤80%
Dimension (cover folded): 190*150*85 mm
Adaptor: Stabilized AC 220V — DC 12V 1A
Video Input: SMA interface
Video Output: SMA interface
For more information, please contact Daisy,
bjjinchu#hotmail.com, change the # to @, email will be of use
|
