Soundproof Crusher

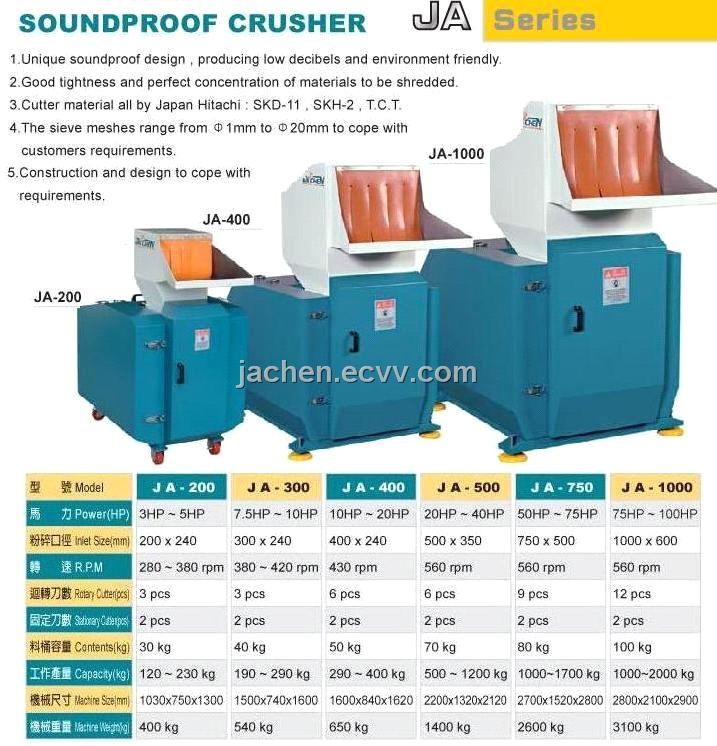

Soundproof Crusher JA Series

Soundproof Crusher

  Prev Product Contact Now Next Product

Detailed Product Description

Features:
  • Blades replacement, cleaning machine, and change screen quickly.
  • It can depends on different screen (From Φ1-20mm) to control the size of crushing granules.
  • When screen base and hopper are being opened, the safety switch built-in the machine stops operating machine immediately.
  • The unloading hopper is mobile and due to comprehensive employment such as auto loaders, storage barrel and bag etc., to exchange the necessary attachment.
  • The Styrofoam inside of double layers hopper can reduce noises.
  • Soundproofed feed hopper for medium- size granulators, designed for minimum noise level and for easy feeding, with several alternative feed options available
  • All machine housing are manufactured in a horizontal or diagonally divided robust steel weld housing.
  • Blade material is made by Japan Hitachi.
    • ex.SKD-11、SKH-2、T.C.T…etc.,
  • Casting Cutting chamber is durable, hard engineer construction.
  • We can depend on client` s requirements to make different specifications for machine.
  • The design has contained vision aesthetic appearance to improve the valuable for machine.

        Model Cutter house opening(mm) Motor, HP Crusher Blades(pcs) Cutter wheel segment (pcs) Throughput (Kg/Hour) Rotor Speed(rpm) Noise level (dB) Blade material(Standard) Blade Material(Optional)
        JA-200 200x240 3~5 2 3 120~230 280~380 78~82 SKH-2 SKD-11
        JA-300 300x240 7.5~10 2 3 190~290 380~420 78~82 SKH-2 SKD-11
        JA-400 400x240 10~20 2 6 290~400 430 78~82 SKH-2 SKD-11
        JA-500 500x350 20~40 2 6 500~1200 560 78~82 SKH-2 SKD-11
        JA-750 750x500 50~75 2 9 1000~1700 560 78~82 SKH-2 SKD-11
        JA-1000 1000x600 75~100 2 12 1000~2000 560 78~82 SKH-2 SKD-11


        Place of Origin:Taichung in Taiwan
        Model No:JA Series
        Brand Name:JACHEN
