Roll crusher

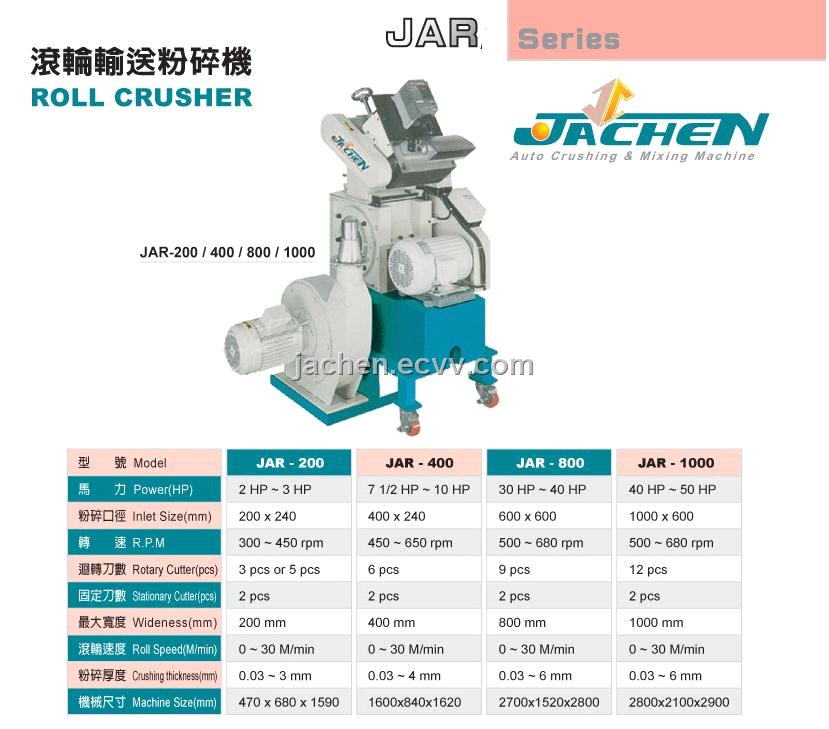

Roll crusher JAR Series

Roll crusher

  Prev Product Contact Now Next Product

Detailed Product Description

JACHEN JAR series Crushing Machines are specializes in widely size of sheet material, waste, film, thermosetting edges, and rejects material. The operation of roll-conveyed crusher machine takes using of auto drag unit (with adjustable roller speed) to input the material. After recycled; the crushing material to store in the cyclone. Then crusher hereby the fixed proportion to mix with the material become recycle system. This system is easy to handle for operators and each flow path is designed to reduce the operation cost and waste yield.
Features:
  • Haul in material system has safety hanging to prevent breakdown the recycled material.
  • Roller can adjust speed by frequency inverter.
  • Recycled material enforce the film to the auto loader and then instant recycling.
  • Faster cutter replacement, easy cleaning allows rapid screen changing.
  • Size of crushed granules adjustable depends on screen changed. (From Φ1-20mm)
  • Built-in emergency safety switch, allows automatic stopping, when screening base and hopper are being opened.
  • Special designs made to order for meeting clients need.
  • Easy access to screen and cutting chamber for cleaning.
  • Access to the rotor and stator knives is simple with the divided cutting chamber which can be opened manually.
  • Cutter material is made by Japan Hitachi SKD-11、SKH-2、T.C.T…etc.,
  • We can afford many models for granulated scrap and capacity volume concern and satisfied client` s requirement.
  • The design has contained vision aesthetic appearance to improve the machine valuable.
  • All machine housing are manufacturered in a horizontal or diagonally divide robust steel weld housing.
  • Rotor shaft in high quality steel mounted on external roller bearing, full sealed and separate from the cutting chamber.
  • Each granulator can be fitted with blower and cyclong for scrap removal.

        Model JAR-200 JAR-400 JAR-800 JAR-1000
        Power (HP) 2HP ~ 3HP 7 1/2HP ~ 10HP 30HP ~ 40HP 40HP ~ 50HP
        Inlet Size (mm) 200 x 240 400 x 240 600 x 600 1,000 x 600
        R.P.M 300 ~ 450 rpm 450 ~ 650 rpm 500 ~ 680 rpm 500 ~ 680 rpm
        Rotary Cutter (pcs) 3 pcs or 5 pcs 6 pcs 9 pcs 12 pcs
        Stationary Cutter (pcs) 2 pcs 2 pcs 2 pcs 2 pcs
        Wideness (mm) 200mm 400mm 800mm 1,000mm
        Roll Speed (M/min) 0 ~ 30 M/min 0 ~ 30 M/min 0 ~ 30 M/min 0 ~ 30 M/min
        Crushing Thickness (mm) 0.03 ~ 3mm 0.03 ~ 4mm 0.03 ~ 6mm 0.03 ~ 6mm
        Machine Size (mm) 470 x 680 x 1,590 1,600 x 840 x 1,620 2,700 x 1,520 x 2,800 2,800 x 2,100 x 2,900
        Place of Origin:Taichung in Taiwan
        Model No:JAR Series
        Brand Name:JACHEN
