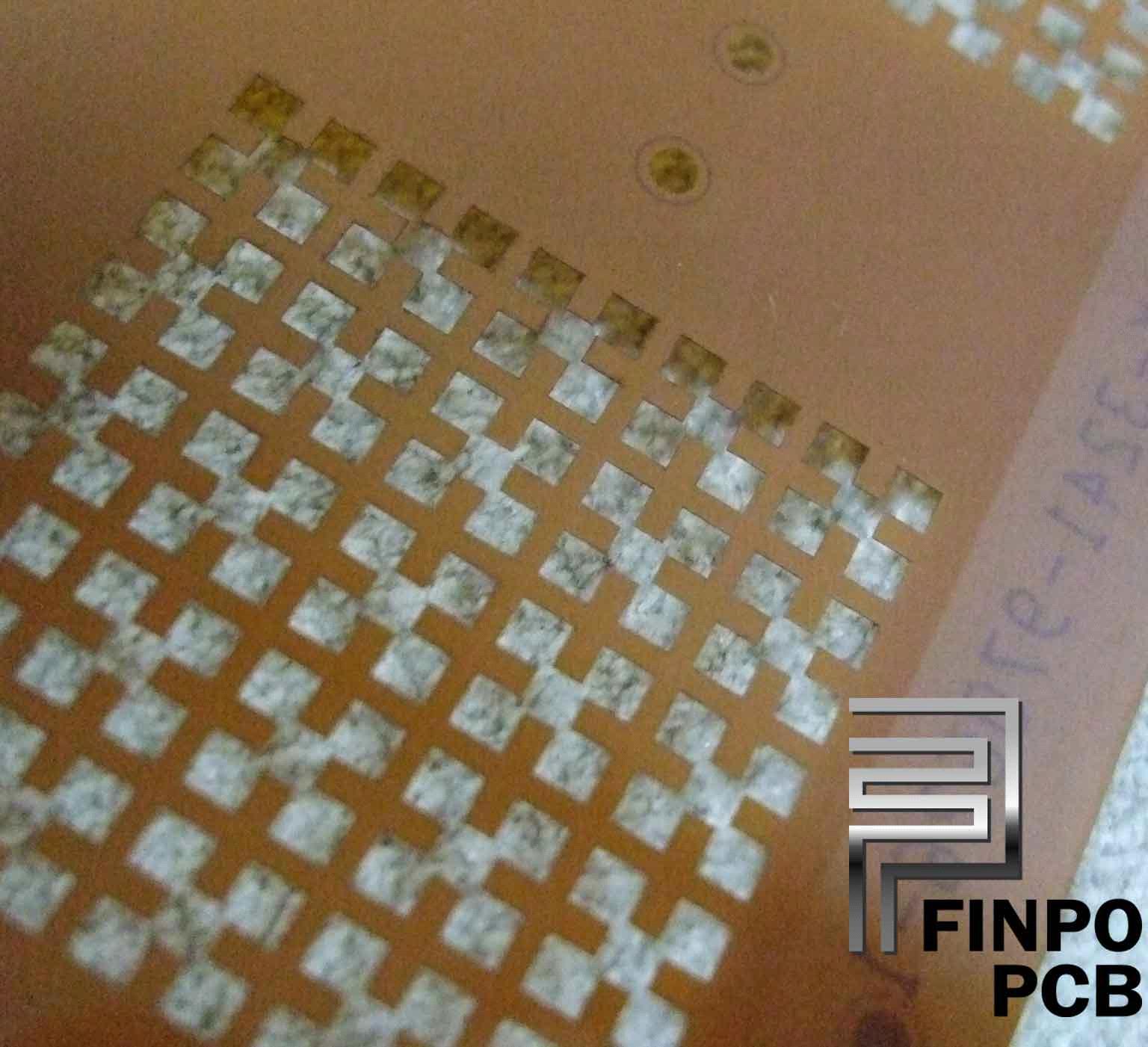

Fpc, flexible PCB, PCB prototype, PCB manufacture

PROCESS

TECHNICAL CAPABILITY

OPTIMIZE SIZE

MATERIAL

MIN. BOARD THICHNSS

SINGLE SIDE0.065MM(( CACULATED THE BIGGEST BOARD THICKNESS BY LINE WIDTH&SPACING 4/4MIL

(INCLUDE SINGLE SIDE COPPER FOIL ))

DOUBLE SIDE0.12MM

(( CACULATED THE BIGGEST BOARD THICKNESS BY LINE WIDTH&SPACING 4/4MIL (INCLUDE DOUBLE SIDE COPPER FOIL ))

SINGLE SIDE0.22M

((CACULATED THE BIGGEST BOARD THICKNESS BY LINE WIDTH&SPACING 8/8MIL

(INCLUDE SINGLE SIDE COPPER FOIL ))

DOUBLE SIDE0.32MM

(( CACULATED THE BIGGEST BOARD THICKNESS BY LINE WIDTH&SPACING 8/8MIL (INCLUDE DOUBLE SIDE COPPER FOIL ))

±0.05MM

DRILLING

MIN. HOLE SIZE0.2MM

HOLE SIZE : 0.4MM

±0.05MM

PTH

MIN. HOLE SIZE0.2MM

HOLE SIZE : 0.4MM

±0.05MM

DRY FILM

MIN. LINE WIDTH4MIL

MIN. SPACING4MIL

LINE WIDTH6MIL

SPACING6MIL

15%

COVERLAY

MIN. PAD 0.6MM

PAD0.8MM

COLOR=BROWN

SOLDMASK&SILK

MIN. LINE WIDTH4MIL

LINE WIDTH6MIL

15%

CNC ROUTING

MIN. STEEL RULE DIE/SRD3MMx3MM

MIN. HARD DIE0.8MMx2MM

HARD DIE3MM

±0.1M

±0.05MM

TEST O/S

FLY PROSESIZE 25MMx30MM

99%

DENSITY1MIL

FIXTURESIZE 400x600MM

DENSITY4MIL
