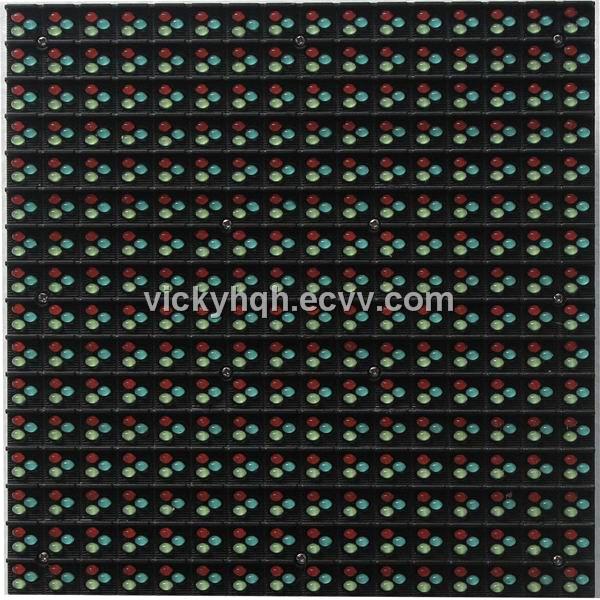

Ultra thin rental P10 outdoor full color led display board

Supply Ability:	5,000 Piece/Pieces per Day
Shipping:	Delivery time: 1-10 days after receiving your deposit
Payment Terms:	L/C, T/T, Western Union

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Mid East, Eastern Asia, Western Europe
Place of Origin:	Fujian in China
Packaging Details:	paper carton, wooden boxes or flight case, according to your need

Quick Details

Brand Name: JCAI
Model Number: JCAI-P10-002
Usage: Outdoor
Tube Chip Color: Full Color
Display Function: Video
Pixels: 10mm

Specifications

Ultra thin rental P10 outdoor full color led display board

1. Pixel pitch: 10mm

2. Size(W×H): 160mm×160mm

3. Density: 10000/m2

4. Lamp orgin: R: opto G/B: SILAN

5. Colors: 1R1G1B

6. Led specs: 546

7. Module resolution: W16×H16

8. Best viewing distance: >10m-150m

9. Best view angle: H110, V60

10. Environmenttemperature:-40℃～ +85℃

11. Working temperature: -20℃～ +50℃

12. RH: ≤10～90%

13. Module Weight: About 503g

14. Cabinet size: 960*960mm

15. IP: IP65

16. Working voltage: 220V±5％

17. Suitable voltage: DC5V

18. Average Power consumption: 350W/m2

19. Largest power consumption: 800W/m2

20. Computer : More than p4-80G/512m

21. Control system: WIN 98/ 2000/ NT/XP

22. Control method: LXY-QCTB-801

23. Spending card: kilomeganetwork card

24. Scanning method: 4S constant current scanning

25. Frame frequency: ≥60HZ

26. Refresh frequency: ≥300HZ

27. Gray color: 4096 lever, can display 16.7M colors

28. Brightness: ≥7500cd/m²

29. Brightness control lever: software can chance 100lever

30. Video signal: PAL/NTSC

31. Input/Output: 8 input/8output

32. MTBF: ≥10000H

33. life: 100000H

34. Power: 5V/40A

CE/ROHS/UL/CCC/FCC/IP65/ISO9001 Certificates
