Home  >Products Catalog > pull extrusion profile > FRP un-standard pultrusion profile

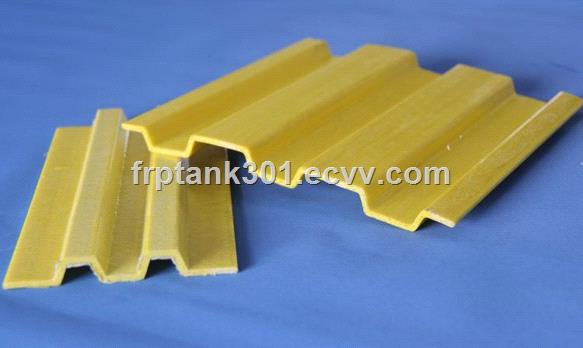

FRP un-standard pultrusion profile SafeBuy Supplier Member

FOB Reference Price: $ 2.56
Wholesale: 2,000 Meter
Supply Ability: 3,000 Meter/Meters per Week
Shipping: by sea
Payment Terms: L/C, T/T
Update Time: 2018/6/1
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Hebei in China
Packaging Details: Packed by bubble membrane or according to customer requirement

Quick Details

  • Dimensions: D:400-2000mm
  • Technique: Pultrusion
  • Surface Treatment: smooth
  • Application: industry,construction,Corrosion Environmental
  • Model Number: C-0100
  • Brand Name: WJ
  • electric,heat and sound insulation: maintenance free

Specifications

FRP pultrusion profile Specifications

1.light weight,high strength
2.excellent anti-corrosion performance
3.electric,heat and sound insulation
4.maintenance free

FRP pultrusion profiles, there are all kinds of FRP pipe, FRP rods, FRP round tube, FRP rectangular pipe,Plum flower tube,R tube, D shape tube,T shape tube, I shape beam, Oval tube, Channel tube, Angle beam Ladder cover, Glass steel beams. Glass steel grating.

The elementary element of the FRP pultrusion profiles for resin and glass fiber (including cloth, carpets, etc.), it was based on the fiber (including glass fiber, carbon fiber, organic fiber and other metal and non-metallic fiber) as the reinforced material, with resin (mainly epoxy resin, polyester resin, polyurethane resin, and phenolic resin) as adhesive agent, supplemented other auxiliary materials (main accessories: release agent, curing agent, accelerant, sealing agent, UV light stabilizer, clean water, gel, etc.) composite. It has high temperature resistance, corrosion resistance, high strength, the proportion of small, low moisture absorption, low extension, and good insulation.and a series of excellent properties.

During the pultrusion process,the raw material are pulled through a heated steel forming die using a continuous pulling device. when the reinforcements are saturated with the resin mixture in the resin bath and the wetted reinforcement package is wrapped in a surfacing veil. the completed package then goes into a performer that roughly forms the package into the appropriate shape to enter the heated die for curing. the die is the exact shape of the final part desired. upon exiting the die, the part is over 90% cured and solid. the length of the part required is pulled through the cutoff saw and the process is complete


Item

Size(mm)

Weight(kg/m)

Height

Wideth

Thickness

Rectangular tube

50

50

3.5

1.204

50

50

4.0

1.362

50

50

5.0

1.665

100

50

5

2.59

100

100

6

4.173

I beam

200

100

10

7.030

150

100

10

6.105

100

50

8

2.723

Channel beam

200

60

10

5.55

175

75

7

4.03

152

43

9.5

3.85

60

50

5

1.388

50

30

5

0.925

87

30

5

0.983

Angle beam

40

40

4

0.56

50

50

5

0.88

Round tube

Outside Dia.


Thickness


28.6


5.0

0.69

32


3.0

0.506

32


6.75

0.99

36


5.0

0.900

45


6.75

1.50

50


3.0

0.82

50


4.0

1.07

50


5.0

1.308

Wintersweet tube

32


5.0

0.558

FRP rod

10



0.176

20



0.67

30



1.5

Baseboard panel

100


3.0

0.722




Remark:

we can produce all the different types FRP pultrusion profile according customer requirement and drawings.

Pultrusion is a continuous process suing fiber reinforcements with thermosetting resin materials. The continuous fiberglass roving and fiber mat are drawn through a resin bath and then through a series of forming guides and finally through a heated mould. Pultruded Profiles is an excellent alternative to metal where rust, corrosion, or chemical attack are problems. It provides exceptional strength, toughness and consistency and its use is increasing across a wide range of applications and industries.
