Kaixin KX5100V B mode pig pregnancy ultrasound scanner
| FOB Price: | 1,200.00 - 1,500.00 USD/Piece |
|---|---|
| Supply Ability: | 500 Piece(s) per Month |
| Shipping: | Sea-worthy packing/Air-worthy packing |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hubei in China |
| Packaging Details: | Sea-worthy packing/Air-worthy packing |
Quick Details
- Properties: Diagnosis & Injection
- Model Number: KX5100V
- Brand Name: DARPPON
- Target customer: Veterinary, farmer, breeder
- AC adapter: 110~240V, 50/60Hz
- Dog: BD, GSD, CRL, HD, BD
- Measurement: Distance, Circumference, Area
- Net Weight: 600g
- Built-in Memory: 100 images
Specifications
Target customer
Veterinary, farmer, breeder.
Application of KX5100 Hand-held Dogs and Pets Ultrasounds
Designed widely for diagnosing of pregnancy, fertility and disease on bovine, equine, ovine, canine, feline, goat, swine, llama and other animals.

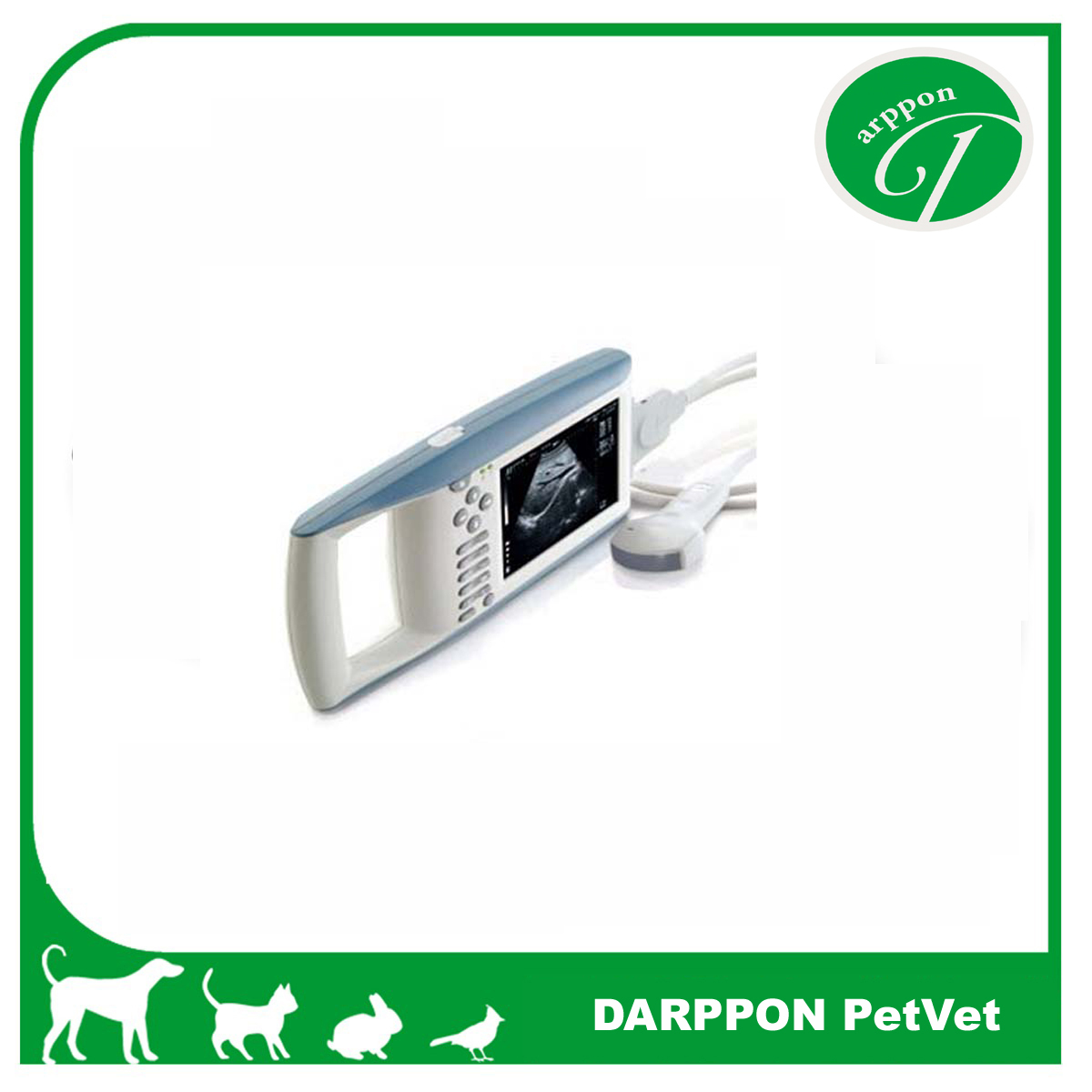

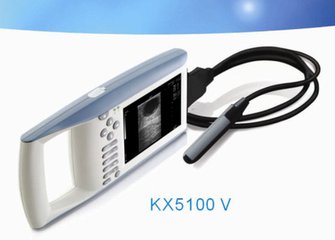

KX5100 Hand-held Ultrasound System
KX5100V Hand-held Ultrasound System offers excellent image quality. The probe has 70mm lens which will allow you to see the follicles up to 65mm. KX5100V is very light, very user friendly and can be taken anywhere. This machine is perfect for working with large animals (bovine and equine), farm animals (goats, sheep, llamas) and pets (cats and dogs). Below are some of the features of KX5100V:
Hand-held design, multiple patents in one, smart and light, easy to carry, convenient for examining.
6.4" high resolution color LCD, high brightness, high contrast, wide visual, image clear and exquisite.
OB measurement: EDD and GA for Bovine, equine, ovine, canine, feline, goat, swine and llama.
Automatically calculate backfat and lean percentage of swine.
100 frames permanent storage, 256 frames cine loop.
Eight pseudo colors (incl.B/W).
High speed USB port support high-capacity U disk, and support the color laser printer print out all kinds of images and reports which make the output of diagnosis more convenient and simple.
Dual-mode TV output:PAL/NTSC, connecting to video recorder and ultrasonic working station.
Optional mouse to operate easier.
Adopted AC and DC to supply power, equipped with two pcs of high-capacity lithium batteries which can make machine work more than 200 minutes.
Functions of KX5100 Hand-held Dogs and Pets Ultrasounds :
| AC adapter |
110~240V, 50/60Hz
|
| Dog | BD, GSD, CRL, HD, BD |
| Cat | HD, BD |
| Sheep/Goat | USD |
| OB Measurement | Swine -- HL |
| Volume and Heart Rate | |
| Measurement | Distance, Circumference, Area |
| Language | English/Chinese switchable |
| O. G (overall gain) adjustable | |
| F. G. (far gain) adjustable | |
| TCG | N. G (near gain) adjustable |
| Image Procession | Coded color, GAMA, Histogram and Image Smoothen |
| Image Reservation | Up/down, left/right |
| Package | Metallic case in a carton box |
| Net Weight | 600g |
| Battery Charging Time | ≥ 2hr |
| Battery Working Time | ≥ 3 hrs |
| Editor | Full screen editor |
| Annotation | Date, clock, name, Sex, ID, Age |
| Focus Position | 2 points adjustable |
| Built-in Memory | 100 images |
| Cine Loop | ≥ 400 frames |
| Scan Depth | 70~240mm, adjustable |
| Gray Shade | 256 levels |
| Display Mode | B (B-mode Ultrasound Imaging (The Definition of B Mode Ultrasound )), B+B, B+M, M (M Mode Ultrasound Definition), 4B |
| Screen: | 6.4 inch TFT color LCD |
Standard configuration
Main unit: 1 pc
6.5MHz linear rectal probe : 1 pc
Power adapter: 1 pc
Internal battery : 2 pcs
Belt for metal case.
Metal case: 1pc.
Silica gel base:1pc
Optional Probe:
4.0Mhz multi-frequency convex rectal Probe
6.5MHz multi-frequency micro-convex probe
3.5MHz multi-frequency convex probe
7.5MHz multi-frequency linear probe
6.5MHz multi-frequency trans-vaginal probe
5.0MHz multi-frequency micro-convex probe
