Electric PDLC Smart Film /Smart Glass Tinting/Switchable Glass Film

FOB Price:	60.00 - 80.00 USD/Square Meter
Supply Ability:	10,000 Square Meter(s) per Month
Shipping:	TNT, DHL, FedEx, UPS delivery or by sea
Payment Terms:	L/C, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hunan in China
Packaging Details:	Round barrel, wooden tow, wooden box

Quick Details

Technique: Laminated Glass,Tinted Glass
Structure: Hollow
Shape: Flat
Function: Bulletproof Glass,Decorative Glass,Heat Absorbing Glass,Low-E Glass
Brand Name: SENOTECH
Type: Sheet Glass
Model Number: ST001
Technique: Clear Glass, Laminated Glass, Tempered Glass
Thickness: 0.38mm
Size: 1200mm & 1500mm
Warranty: 2 years
Material: PDLC, EVA,PET,ITO
Certificate: CCC CE
Color: white, grey
Application: Hotel,Bar room,Supermarket,bathroom
voltage: 36v/48v/65v/110v
After-sale Service: Online Technical Support

Specifications

Product Description

the PDLC smart film is based on the polymer dispersed liquid crystal technology. the Smart glass film can switch between transpArent and opaque by voltage adjustment. with the electric field principle of PDLC glass, it is convenient to protect privacy while maintaining transmittance. so it has the dual characteristics of ordinary glass and electric window shades.

Electric PDLC Smart film smart glass tintingswitchable glass film

Product Parameters

Item		Mode	Remarks
Optical Properties	Visible Light Transmittance	on	>80%
		off	>55%
	Parallel Light Transmittance	on	>78%
		off	<3%
	Haze	on	<6%
		off	>90%
	UV Blocking	on/off	>99%
	IR Blocking	on/off	>60%
Electrical Properties	Operating Voltage	on	48V/65V
	Power Consumption	on	5W/
	Switching Speed	on-off	<20ms
		off-on	<200ms
Life Time		> 10 years
Viewing Angle		140 °
Operating Temperature		-30 ℃ to 50℃
Storage Temperature		-30 ℃ to 70℃
Dimension	Thickness	0.4mm
	Length& Width	Customized
Controlling Ways		Switch, Voice, Remote Control, Remote Network Control,etc

Application
Electric PDLC Smart film smart glass tintingswitchable glass film
Packaging & Delivery

[Packing Details]

A: Paper corn inside

B: Bubble paper as smart film protection

C: Foams fix the two ends

D: Carton

E: Plywood case as the clients requirements

International standard, minimum cost

[Delivery Detail]

7 days after receiving the payment

DHL, UPS, TNT, FedEx

FAQ

Q: What is PDLC?

PDLC means Polymer Dispersed Liquid Crystal

Q: What is PDLC Smart Film?
the PDLC smart film is based on the polymer dispersed liquid crystal technology. the smart glass film can switch between transparent and opaque by voltage adjustment.

Q: What is the principal of the PDLC smart film works

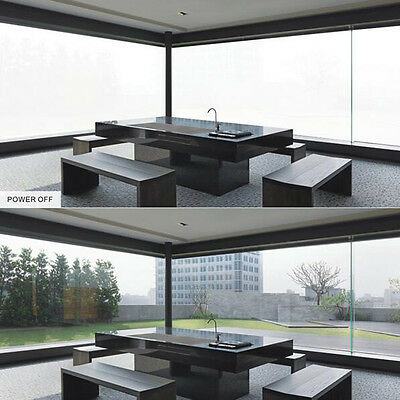

When the power is off, the polymer liquid crystal materials are disorderly arranged, so that the light can not pass though the film, and it presents a milky white opaque state. When the power is on, the light can pass through the film under electric field, and then it appears transparent.

Q: Is PDLC smart film suitable for indoor or outdoor use?
PDLC glass is typically used for indoor applications, but some companies have outdoor grade technologies.,

Q: What is difference between Self-adhesive PDLC Film and Non-adhesive Film:

1. the non-adhesive electric blackout glass film cannot be used directly. It must be glued between two pieces of glass through a special process and then made into a dimming glass. so it mainly sold to smart glass manufacturers.
2. the self adhesive tinted window film can be applied directly, Because a layer of electrostatic glue was added on the non-adhesive film. the installation is very simple. It is just like filming a mobile phone.

Q: Can switchable smart glass replace blinds and shades?
PDLC can replace blinds or shades used to create privacy in interiors. PDLC Smart Glass with IR reflection capabilities can also help control temperature. SPD is used to block up to 99% of light, creating shade, making it ideal for exterior windows.

More details please contact Nydia whatsapp/wechat 8615755166288 feel free.
