Botou Sanyangtongtai Machinery Co., Ltd.
China Manufacturer with main products: Roll Forming Machine, Purlin Machine, Stud Forming Machine, Double Layer Forming Machine, Bending Machine, Cutting Machine, Slitting Machine |

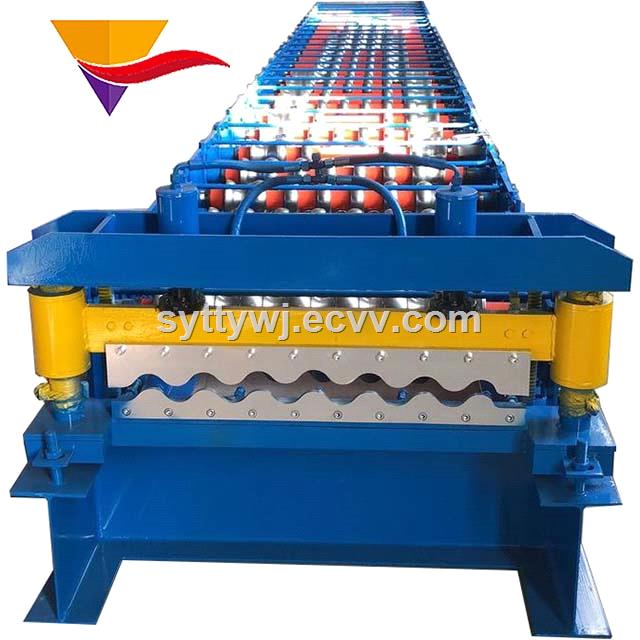

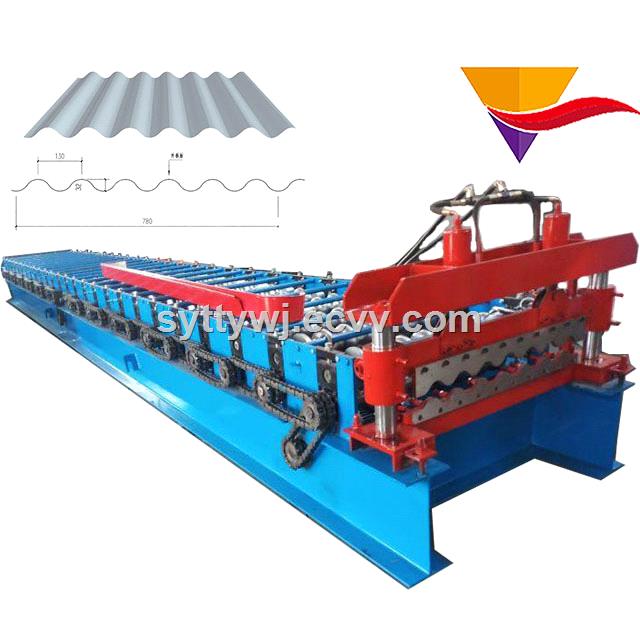

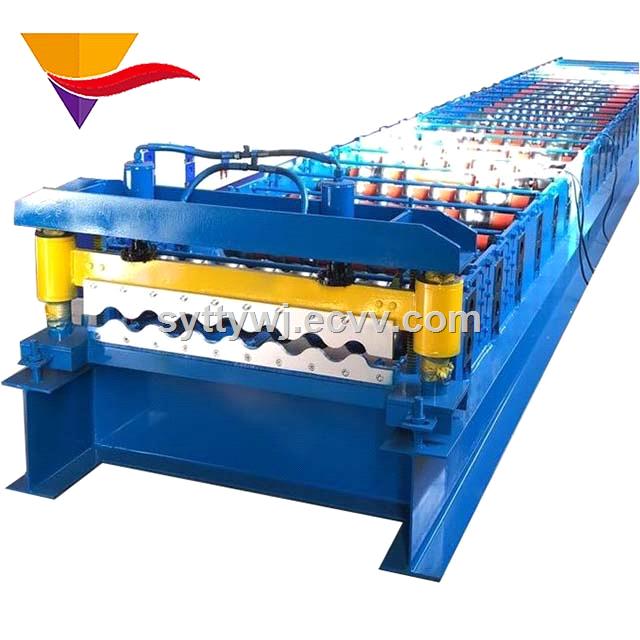

780 Corrugated Roofing Sheet Roll Forming Machine
| FOB Price: | 12000.00 - 15000.00 USD/Set |
|---|---|
| Supply Ability: | 10 Set(s) per Month |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 2Years
- Certification: ISO9001
- Brand Name: SYTT
- Condition: New
- Weight: 2500KG
- Dimension(L*W*H): 6500*800*1200MM
- Voltage: 380V
- Power(W): 3KW
- Model Number: 780
- Production Capacity: 12-15
- Use: Roof
- Tile Type: Colored Steel
- Type: Tile Forming Machine
- Shaft: 70mm
- Main Motor: 5.5KW
- Hydraulic pump station: 3KW
- Forming Station: 25 Step
- Color of Machine: Blue
- Container: 1*40gp
- Model: 780
- Voltage: 380V
- Weight: 3500kg
Specifications
No. |
Item |
Spec |
Unit |
1. |
Machine Type |
780 Corrugated Profile Forming Machine |
|
2. |
Structure |
300H Steel Welding |
|
3. |
Middle Plate Thickness |
14 |
mm |
4. |
Raw material |
PPGI |
|
5. |
Feeding width |
1000 |
mm |
6. |
Effective width |
780 |
mm |
7. |
Thickness |
0.2-0.8 |
mm |
8. |
Yield strength |
350mpa |
Mpa |
9. |
Working speed |
12-15(without cutting speed) |
m/min |
10. |
Roller QTY |
11 |
step |
11. |
Roller material |
45# steel,finishing machining and plating hard chrome on surface.HRC58-62° |
|
12. |
Main Shaft material |
45# high quality steel, Quenching treatment |
|
13. |
Main Shaft |
Diameter:70 Solid Shaft |
mm |
14. |
Chain |
1 |
inch |
15. |
Main Motor Power5 |
5.5 | kw |
16. |
Hydraulic Pump Station Power |
3 |
kw |
17. |
Hydraulic pressure |
12 |
Mpa |
18. |
Voltage |
According to the customer requirement |
|
19. |
Blade material |
Cr12 quenching treatment |
|
20. |
Electric System |
Control panel |
|
21. |
Cutting mode |
Hydraulic cutting,cutting after forming |
|
22. |
Color |
Can as your requirement. |
|
23. |
Container |
1*40GP |
