Ningbo j Top Industry & Trade Co., Ltd.
China Manufacturer with main products: GASKET, GASKET SHEET, GLAND PACKING, FLANGE INSULATION KIT, GASKET MACHINE, HEAT INSULATION |
Pipe Flange Insulation Kits Type E/Type F/Type D
| FOB Price: | 1.00 - 100.00 USD/Set |
|---|---|
| Supply Ability: | 1,000 Set(s) per Quarter |
| Shipping: | air/sea |
| Payment Terms: | T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |

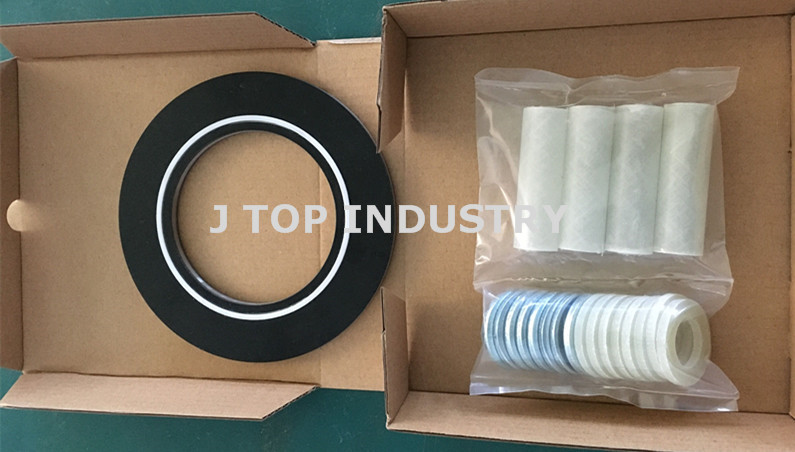

| Packaging Details: | per set per box,outside carton/wooden case |
Quick Details
- Standard or Nonstandard: Standard
- Shape: Ring Gasket
- Material: Metal
- Brand Name: J top
- Color: metal
- Model Number: JT-K
- type: D,E,F
Specifications
Flange insulation gasket set JT-Kseries
Type E Model: NO: JT-K01 Type F Model NO: JT-K02 Type D Model: NO: JT-K03 |

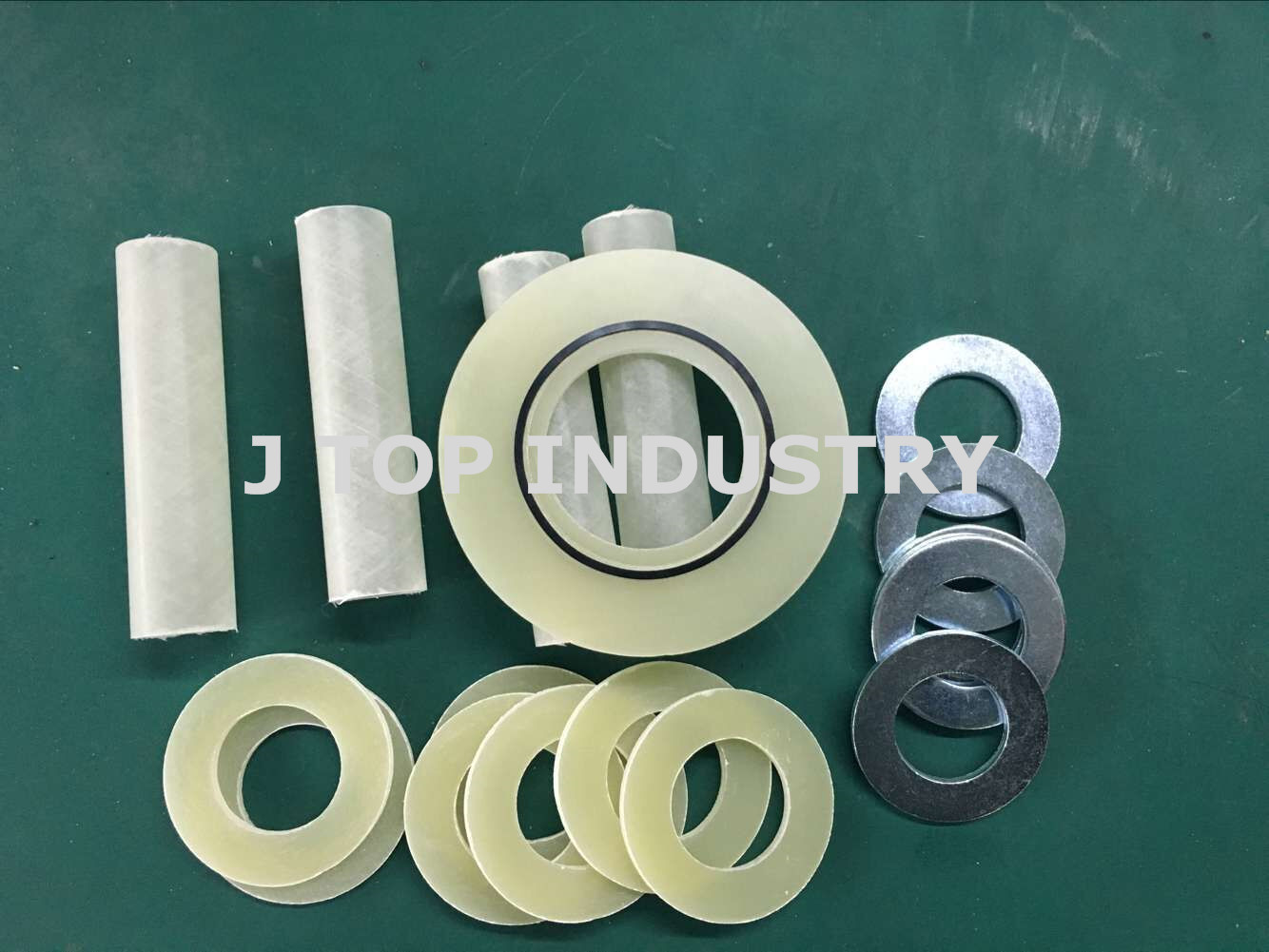

the insulation group is composed of insulation gasket, Casing, insulation gasket and steel gasket. the insulation group is used in two Pipeline flanges of different materials to prevent corrosion and related fully Conductive insulation protection. It is suitable for offshore insulation, Seawater environment, hydrocarbon, chemical insulation, refinery and pipeline Insulation.
Type E JT-K01 type E is a full flat gasket (equipped with FF type), which has the same outer diameter and bolt hole as the flange. this Design facilitates the correct alignment of the gasket during installation.
Type F jt-k02 type F insulating gasket is applicable to Convex flange (equipped with RF type). the outer diameter of the insulating Gasket of this insulating group is the same as that of the flange, and there Are accurate bolt holes.
Type D jt-k03 type D insulating gasket is specially
Designed for ring groove flange sealing (equipped with RTJ type). It is
Generally made of phenolic material and GRE and is suitable for ANSI and API
Specifications. Type D gasket is generally supplied in oval or octagonal shape.
In addition, it can also be provided in accordance with BX type. this type is
High pressure resistant.
