CE Certified by KEMA , Holland
DIMENSIONS
Height............................................................1320 mm
Length............................................................1550 mm
Width.............................................................. 640 mm
Net Weight.......................................................480 Kg
MOTOR SPECIFICATIONS
Mechanic Motor.........................0,75 kw , 1400 rpm , 1 hp
3 phase - single phase
380 V - 220 V
Hydraulic Motor........................ 0,75 kw 1400 rpm, 1 hp
3 Phase - single phase
380 V - 220 V
Shining Motor ........................ 2,2 kw 3000 rpm, 3 Hp
3 Phase - single phase
380 V - 220 V
Sound Level........................................................45 db
HYDRAULIC PISTON POWER
Total pressure = pr2 x 160 (Working pressure bar)
Total pressure = 3,14* (3,15 x 3,15) = 31,156kg
Total pressure = 31,156 x 160 = 4 984,96kg

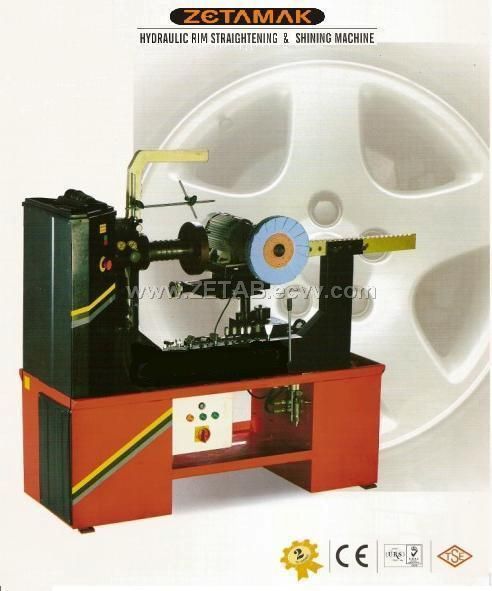

Diameter of piston cylinder we used is 63mm which comes to as radius 3,15 cm. As you have seen above formula you can have 5 tons of total pressure while working on our Rim Straightening and Shining Machines.
STANDARD ACCESSORIES
1. 18 pcs rim attaching center
2. 1 pc (mihengir) metal pointer
3. 1 pc angular press tip
1 pc flat press tip
1 pc gradated press tip
1 pc fork press tip
1 pc cutting type press tip
4. 3 pcs support axis for press tips
5. 1 pc lever
6. 1 pc lathe pen
7. 1 pc supper support
8. 1 pc lower support
9. 4 pcs Support pins
10. Flange nuts and bolts
11. 1 pc shining soap
| Place of Origin: | izmir izmir in Turkey |
| Model No: | RSS2600 |
| Brand Name: | zetamak |
| Other Price Terms: | 3950 |
| Supply Ability: | 15 / month |
| Package: | On standard export pallets |
| Delivery Time: | 10 |
