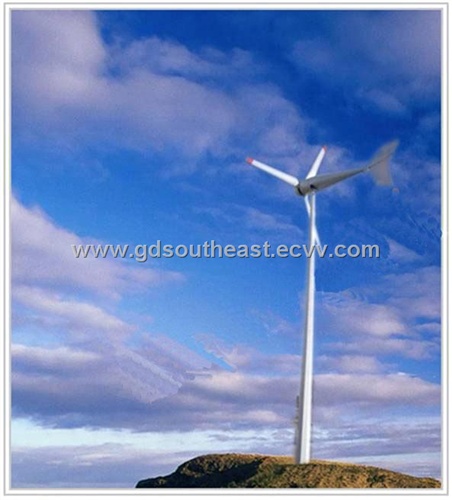

Wind Turbine (S.E.5000)
5kw WIND TURBINE Specification: * Model No: S. E. 5000(5000W)
* Rated Power(W): 5000
* Peak Power(W): 6000
* Rated Voltage(DCV): 240
* Rated Current(A): 21
* Start-up Wind Speed(m/s): 2
* Cut-in Wind Speed(m/s): 2. 5
* Rated Wind Speed(m/s): 10
* Stop Wind Speed(m/s): 25
* Survival Wind Speed(m/s): 45
* Number of Blades: 3
* Blade Material: Glass Steel
* Wheel Diameter(m): 6. 4
* Wheel Area(m2): 32. 2
* Rated Rotated Speed(r/m): 200
* Diameter of Tower Pipe(mm): 273*6
* Tower Height(m): 12
* Net Weight of Generator(kg): 325
* Operation Temperature(C): -40~60
* Protection Level: IP54
* Insulation Level: B
* Cooling Mode: IC0041
* Generator: Three phase magneto dynamo
* Drive Mode: Direct driven by wheel
* Adjust Direction Mode: Automatic
* Adjust Batteries Capacity: Twenty
* Output Voltage(ACV): 110/120/220/230/380
* Output Frequency(Hz): 50/60
* Default Inverter Type: Sine wave
* Certificate: CE
