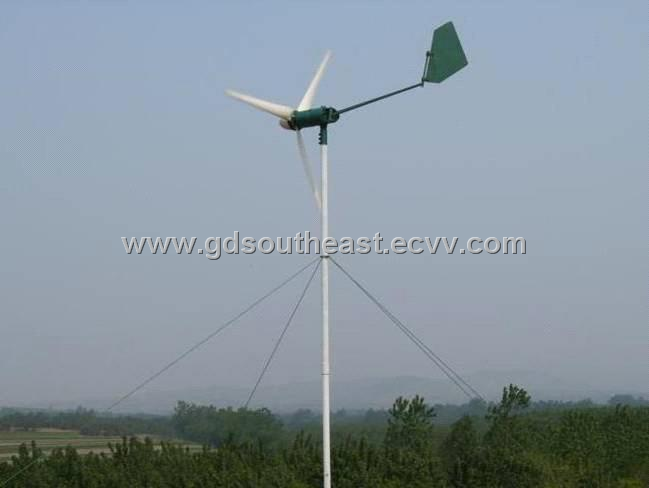

Wind Turbine S.E.500 (500W)

500w WIND TURBINE

Specification:

Model No: S.E.500(500W)
Rated Power(W):500
Peak Power(W):1600
Rated Voltage(DCV):48
Rated Current(A):21
Start-up Wind Speed(m/s):2
Cut-in Wind Speed(m/s):2.5
Rated Wind Speed(m/s):12
Stop Wind Speed(m/s):NONE
Survival Wind Speed(m/s):35
Number of Blades:3
Blade Material:Glass Steel
Wheel Diameter(m):2.7
Wheel Area(m2):5.7
Rated Rotated Speed(r/m):400
Diameter of Tower Pipe(mm):114*3.25
Tower Height(m):6
Net Weight of Generator(kg):25
Operation Temperature(C):-40~60
Protection Level:IP54
Insulation Level:B
Cooling Mode:IC0041
Generator:Three phase magneto dynamo
Drive Mode:Direct driven by wheel
Adjust Direction Mode:Automatic
Adjust Speed Mode:Automatic
Adjust Batteries Capacity:two(12V200AH)
Output Voltage(ACV):110/120/220/230
Output Frequency(Hz):50/60
Default Inverter Type: Modified Sine wave
Certificate: CE

Model No:	S.E.500(500w)
Payment Terms:	T/T(Bank Transfer),
Package:	Crate
Delivery Time:	within 20
