1> Dimension: (L * W * H): 1,380 * 820 * 895
2> Wheel base (mm): 885
3> Ground clearance (mm): 98
4> Max. Speed (km/h): >50
5> Brake method (F / R): Double drum / disc
6> Tire size( F / R): 16 * 8 - 7 / 16 * 8 - 7
7> Seat height (mm): 630
8> Fuel capacity: 4 L
Engine type:
1> 90 cc, 4-stroke, air-cooled, single-cylinder
2> Max. Power and speed: 5.5 / 8500 (kw / rpm)
3> Max. Torque: 6.5 / 6000 (N.M / rpm)
4> Starting method: Electric
5> Transmission: 4-speed, Auto clutch, chain
6> Ignition: CDI
7) Packaging: Carton with steel frame
8) Carton dimensions: 1,160 * 790 * 660 mm
9) N.W. / G.W.: 79 kgs / 89 kgs
Conveyance: 120 pcs / 40'HQ
10) Choose: 50 cc, 70 cc, 90 cc
11) Color: Blue, red, black, yellow, green
12) CE, ISO9001:2000, VIN
| Place of Origin: | Zhejiang in China |

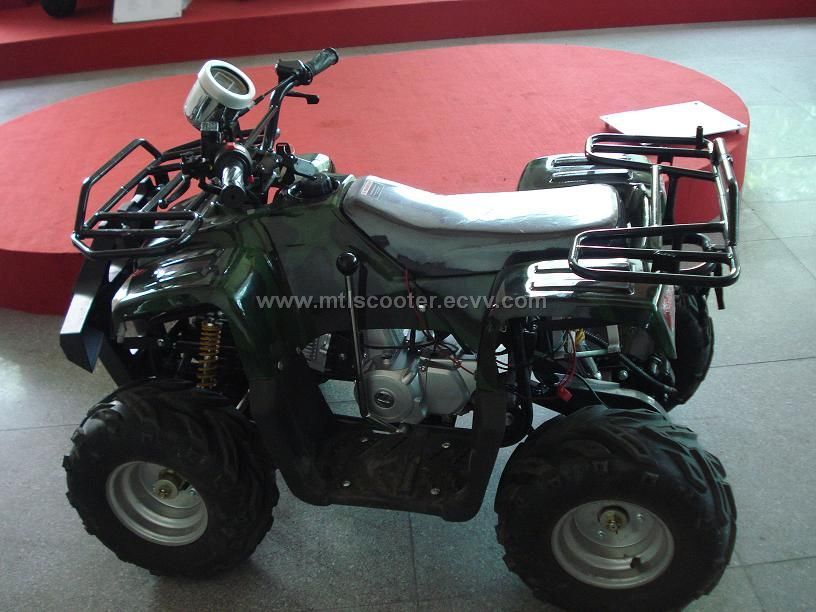

| Model No: | ATV-110 |
| Payment Terms: | L/C,T/T(Bank Transfer), |
| Package: | Carton with steel frame |
| Delivery Time: | within about 20days after your order |
