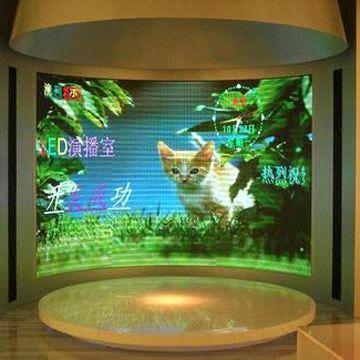

indoor led display screen

Detailed Product Description

1. Function and Technology Character

    (1) Multiform file formats, such as VGA, Video, AVI, MOV, MPG, DAT, VOB and so on are comprehensive.
    (2) Information source can be camera, video, VCD, DVD, LD, TV and so on.
    (3) Clear picture without flicker and distortion.
    (4) Brightness, contrast, saturation can be adjust by itself and manual.
    (5) Show everything with your PC does synchronously.
    (6) Super correcting technology for distortion.
    (7) One interface for sound signal and two for video signal at least.

Specification	Parameter
Pixel Pitch	6mm
Pixel composing	1R1G1B
Wavelength (R)	625±5
Wavelength (G)	522±3
Wavelength (B)	467±3
Wave Angle (H)	140°(H)/60°(V)
Led package	SMD 0603
Density	27,777
Display color	256256256
Whiteness brightness	≥1400cd
Brightness level	128 grade
Changing frame frequency	60 Hz
Refresh	400 Hz
Driving method	Constant driving 1/8
Control mode	synchronous
Display port	DVI
Display mode	1024768 10241024
Out of control	1/10,000 ( scattered)
lifetime	100,000 hours

Structure Feature
Specification	Parameter
Module size	192mm*192mm
Display resolution/module	32 dots*32 dots
Standard cabinet size	960 mm*768mm
Weight per sqm	45 Kg/sqm
Protection classification	---
Install mode	Wallmount, hung and stand structure

Working Power
Specification	Parameter
Working voltage	AC 220v/380v±10% 47~64Hz
Max power/sqm	1100W/sqm
Average power/sqm	750W/sqm
Short circuit protection	Yes

Working Environment
Specification	Parameter
Environment	Indoor
Working temperature	--20~50℃
Working Humidity	10~90%

Place of Origin:	Shenzhen in China
Model No:	Mary-in
Brand Name:	Mary
Other Price Terms:	same as regular order
Payment Terms:	L/C,T/T(Bank Transfer),
Others Payment Terms:	Money Transfer
Minimum Order:	Piece/Pieces 1
Supply Ability:	Square Meter\|5000\|Month
Package:	foams/cartons
Delivery Time:	20-25 days
