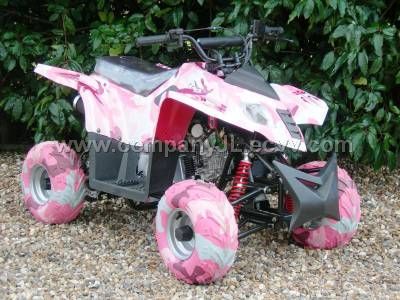

ATV(JL110ST-10)

Detailed Product Description

Specifications:
1) Max speed: >45km/h
2) Climbing ability: >15 degree
3) Max loading: 150kg
4) Distance between axles: 960mm
5) Distance between front wheels: 745mm
6) Distance between rear wheels: 740mm
7) Ground clearance: 125mm
8) Specification of front wheel:16 X 8-6
9) Specification of rear wheel: 16 X 8-6
10) Engine: 110cc, single-cylinder, 4 strokes
11) Displacement: 49ml
12) Rated power and rotation speed: 2.3kwW8500rpm.approx
13) Max torque and rotation speed: 2.7N.m/6500r/min
14) Compression ratio: 7:1
15) Transmission: fully auto clutch and 4 speed semi auto
16) Starting system: electric start and kick-back start
17) Cooling system: air cooling
18) Oil tank: 3.4L
19) Brake: front and rear disc brake
20) Dimensions: 1120 x 730 x 560mm
Packing:
Carton: 1150 x 760 x 700mm
N.W.: 90kg
G.W.: 100kg

Place of Origin:	China Zhejiang wuyi
Model No:	ATV(JL110ST-10)
Brand Name:	JIULING
Minimum Order:	10pcs
Supply Ability:	100pcs/per day
Delivery Time:	15
