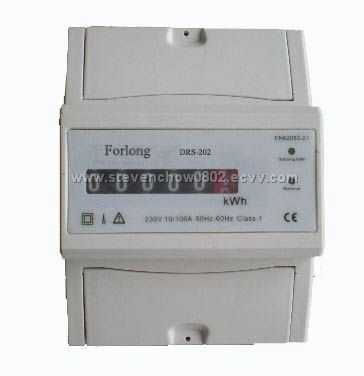

din rail energy meter

General Descripition
DRS202 Series Single phases DIN RAIL kWh meter use International technology of surface decoration
with high-precision electric elements. It has the functions of high accuracy, stability, small size, light
weight, low power consumption and bilateral recording with indication of missing phase, sign of output
pulse so that it is easy for extended functions of modernized management. It conforms to the related
GB/T17215-1998 and IEC62053.

Measuring the energy consumption correctly. In case of reverse energy connection.
With high performance characteristics of measurement (with flat typical load curves)
Two Display Modes:
Mechanical register driven by stepper motor
counter6+1=999999.9/counter5+1=99999.99) The motor is specially designed with shield
for high anti-interfere feature.
LCD 6+1=999999.9kWh
Low power consumption, less than 1W for meter.
Wide voltage rage applicable,0.7Un1.2Un
Single module and four module selectable
IEC62053-21

Place of Origin:	Shanghai in China
Model No:	DRS202
Brand Name:	forlong
