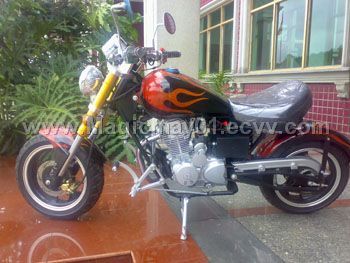

mini Chpooer

Engine Type 4 stroke Air cooled
Cylinder Arrangement single cylinder
Displacement 198cc
Bore x Stroke (mm) 69 x 53
Compression Ratio 9.2 :1
Carburetor VN26
Starter System Electric
Ignition CDL
Fuel Unleaded gasoline
Transmission 5-speed
Primary drive Gears
Secondary Drive 428 O-ring chains
Maximum Power (kw/r/min)
Maximum Torque (N.m./rpm)
clutch Manual,multi plate.wet
Front suspension Reverse hydraulic
Rear suspension Hydraulic
Front&rear brake Disc brake
Front&rear tire 130/60-13
Wheelbase 1300mm(51.1")
Ground Clearance (mm) 180
Seat Hight (mm) 740(29")
Fuel Tank Capacity (L) 11L
Net Weight (kg) 115 kg (253.5LBS)
Overall Length (mm) 1900mm(74.8")
Overall Width (mm) 880mm(34.6")
Overall Hight (mm) 945mm(37.2")
the main specifications are subject to change without notice by the manufactuer
EPA,DOT

Place of Origin:	Zhejiang Yongkang in China
Model No:	M1-250-03
