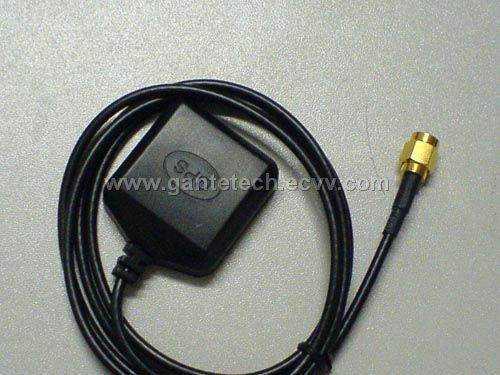

GPS Antenna

Detailed Product Description

1 Dielectric Antenna
Center Frequency 1575.42MHz+-3 MHz
V.S.W.R 1.5:1
Band Width +-5 MHz
Impedance 50 ohm
Peak Gain >3dBic Based on 7?cm ground plane
Gain Coverage >-4dBic at -90'<0<+90'(over 75% Volume)
Polarization RHCP
2 LNA/Filter
LNA Gain(Without cable) 28dB Typical
Noise Figure 1.5dB
Filter Out Band Attenuation (f0=1575.42 MHz)
7dB Min f0+-20MHz
20dB Min f0+-50MHz
30dB Min f0?00MHz
V.S.W.R <2.0
DC Voltage 3V / 5V/ 3 to 5V
DC current 5mA .10mA Max
3 Mechanical
Weight <110gram
Size 39?3?4mm
Cable RG174 5 meters or3 meters
Connector SMA/SMB/SMC/BNC/FME/TNC/MCX/MMCX
Mounting Magnetic/sticking
Housing Black
4 Environmental
Working Temp -40'C~+85'C
Vibration Sine sweep 1g(0-p)10~50~10Hz each axis
Humidity Humidity95%~100%RH
Weatherproof 100%Waterproof
±
