ZhongDa Automobile Machinery Manufacture Co.Ltd

tyre changer

Detailed Product Description

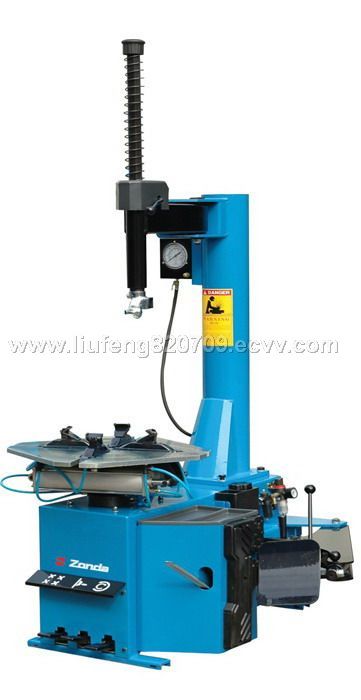

ZD-S300 Tyre Changer
Features
1.Semi-automatic tyre changer with swinging arm for rapid head positioning to the rim.
2.Integrated demounting, mounting and inflating the tyres, wide rim diameter capacity.
3.Self-centering function.
4.High alloy mounting head with optimised profiling and good wearing capacity.
5.Double clamping cylinders ensure accurate centering and reliable clamping.
6.With adjustable opening, bead breaker suitable for various size tyres.
7.Equipped with box type inflating meter.
8.Quick inflating device to make bead seating through air bursts from the turntable slides.
9.Nylon protector for mounting head and clamping jaws.
10.Manual locking of the horizontal and vertical head holder arm.
11.Square turntable.
Technical data
Rim clamping diameter (outer)10-20 inch
Rim clamping diameter (inner)12-21 inch
Rim width         3-12 inch
Max. wheel diameter    1000mm
Working pressure      8-10bar
Bead breaker force      2500kgf
Turntable RPM       5.5rpm
Torque of turntable      1302Nm
Motor power        1.1/0.75kw
Weight           250kg
Power supply        110v/220v,380v 60Hz/50hz
Place of Origin:jiangsu Yancheng in China
Model No:S200 S300
Brand Name:zonda
Other Price Terms:650/780
Supply Ability:1000
Package:WOODEN CASE
Delivery Time:14
