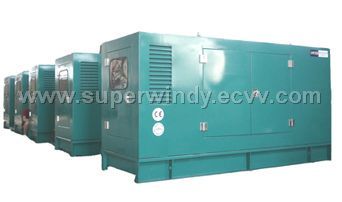

SH-Soundproof Series Generator set(8KW-400KW)

Detailed Product Description

The sound-proof type genset has perfect all-weather service property and the outside steel material features preferable corrosion prevention capability. Special noise elimination setting restrains machinery noise to be lowered below 75dB.
Specifications:
1) Output range: 8kW (10kVA) - 400kW (500kVA)
2) Noise level: below to 75dB by 7m distance
3) Sound attenuated enclosure: special noise elimination setting restrains the machinery noise and the unit has perfect all-weather service property and the outside steel material features preferable corrosion prevention capability
4) Water-cooled
5) 8hrs operation base tank
6) Key start / auto start
7) Sound-proof / weather-proof canopy is optional
8) 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires
  alternating current output
9) Frequency: <3%
10) Frequency at stable state: <0.5%
11) Frequency deviation at instantaneous state: ≤+10%
12) Frequency return time: ≤3s
13) Voltage deviation at stable state: ≤?%
14) Voltage deviation at instantaneous state: ≤+20%
15) Voltage return time: ≤4s
16) Voltage modulation: ≤0.3%
17) Standard configuration of gensets:
   a) Engine: Deutz, Perkins, Steyr, Cummins and Weichai series diesel engine
   b) Engine type: water-cooled, in line four-stoke, Humit cylinder liner, direct injection
   c) Alternator: Marathon brushless alternator
18) Control system:
   a) Automatic alarm system: the unit has the acoustic-optics alarm system and arrestor for any situation as the start defeat, the water is over temperature, the oil pulls down, over speed, over load and over current
   b) Operation display:
     i) Unit voltage, tri-phase load current and frequency display
     ii) Water temperature, oil pressure display
     iii) Fuel level, fuel temperature display
     iv) Audible and visual alarm lamps and buzzers
19) Starting system: DC alternator is used to start engine
20) Short circuit protection: MCCB air switch
21) Cooling system: combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40癈
22) Filter system: oil, fuel and air filter
23) Accessories: exhaust elbow, bellow, muffler
24) Suppl
