Shenzhen Evelawyer Legal Technologies Co., Ltd.
China Manufacturer with main products: Stand Alone DVR, Mobile DVR, CCD Cameras, Wireless Security, IP Camera, Dvs, Decoder, NVR |

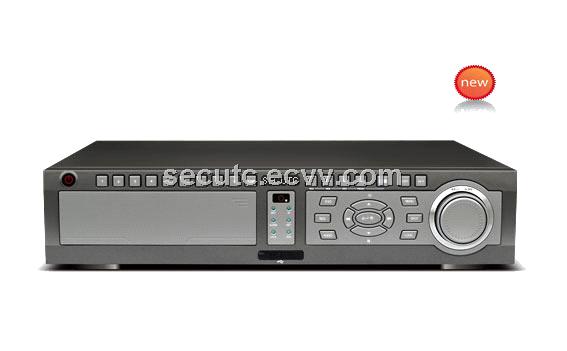

DVR
| FOB Price: | 1.00 USD/Piece |
|---|---|
| Supply Ability: | 1,000 Piece/Pieces per Month |
| Shipping: | 3 |
| Payment Terms: | L/C, T/T, Paypal, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shenzhen in China |
| Packaging Details: | Box |
Specifications
Support D1 non-real-time recording and 16 channels playback at the same time.
Supply BUILT-IN DDNS domain name.
Support five OS for mobile surveillance.
Powerful CMS.
Support 16 users network view simultaneously.
Up to 32 channels CIF real-time recording and 16 channels playback at the same time.
Support YPbPr/HDMI output,connected with big size HD TV perfectly,resolution is 1920×1080.
Support up to eight 2000G HDD.
| Model |
SEC816
|
SEC824
|
SEC832
|
| Compression | H.264 | ||
| Video format | NTSC / PAL | ||
| Video input | 16×BNC(1.0Vp-p, 75Ω) | 24×BNC(1.0Vp-p, 75Ω) | 32×BNC(1.0Vp-p, 75Ω) |
| Video output | 1×BNC(1.0Vp-p, 75Ω); 1×VGA; 1×HDMI; 1×YPbPr | ||
| SPOT output | 1×BNC(1.0Vp-p, 75Ω) | ||
| LOOP output | 16×BNC(1.0Vp-p, 75Ω) | No support | |
| HDMI output resolution | 1920×1080i50/1920×1080i60 | ||
| YPbPr output resolution | 1920×1080i50/1920×1080i60 | ||
| VGA output resolution | 1280×1024 | ||
| Live frame rate | 16×25fps(PAL), | 24×25fps(PAL), | 32×25fps(PAL), |
| 16×30fps(NTSC) | 24×30fps(NTSC) | 32×30fps(NTSC) | |
| Network resolution/fps | CIF each channel>20fps | ||
| Record | 16CH CIF real time or | 24CH CIF real time or | 32CH CIF real time or |
| 16CH D1 non-real time (6fps) | 24CH non-real time(6fps)D1 | 32CH D1non-real time(6fps) | |
| Playback | 1/4/8/16CH CIF real time playback or | 1/4/9/16CH CIF real time playback or | 1/4/9/16CH CIF real time playback or |
| 1/4/8/16CH D1 non-real time playback at the same time | 1/4/9/16CH D1 non-real time playback at the same time | 1/4/9/16CH D1 non-real time playback at the same time | |
| D1 record frame rate | 100fps (PAL); | 150fps (PAL); | 200fps (PAL); |
| 120fps (NTSC) | 180fps (NTSC) | 240fps | |
