Detailed Description of Separate and Pressurized Solar Water Heater

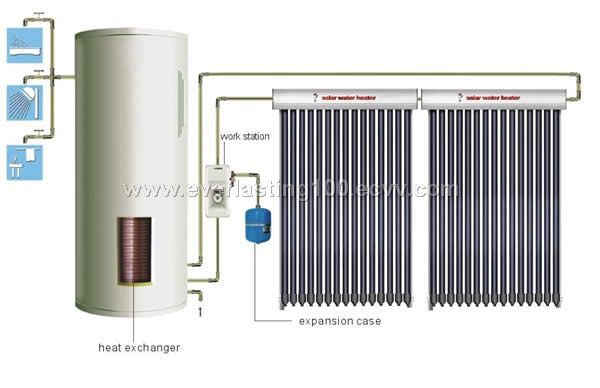

The separate and pressurized solar water heater composed by heat collector, storage tank, controller, working station and installation parts.
Outstanding features:
1) Collector separates with the storage tank. The tank can be put anywhere of the house. And the collector can be put on the inclined roof or flat place.
2) Aluminum alloy mould material of high strength with airflow design
3) It is furnished in good style; Module design, arbitrary combination, harmony with the building perfectly.
4) Pipeline is made of all red copper and conducted by heat transfer medium liquid.
5) With increased anode magnesium bar stick to prevent furring.
Working principle:
1) When the temperature of the heat collector reaches the set value, the controller shall start the circulation pump automatically.
2) The circulation pump makes heat-conducting liquid circulate automatically.
3) The heat-conducting liquid transfers heat to water by heat exchanger in the water tank.
4) In case the temperature of the water tank does not reach max, then start the auxiliary heating device.
5) In case the temperature of the circulation pump does not reach the set value, the circulation pump shall be shut automatically
6) Intelligent control and automatic operation. Tank is equipped with electric water heater setting, automatic temperature controller.
7) Anti-freeze: no water inside the tubes when it works. And the insulating layer uses polyurethane bulk bubble.
8) Multifunction: Bathing, washing, domestic heating
9) Workable at anytime and enjoyable
| Place of Origin: | zhejiang haiyan in China |
| Model No: | EL101-50 |
| Brand Name: | strong power |
| Supply Ability: | 500000/month |
| Package: | export carton |
| Delivery Time: | 20 |
