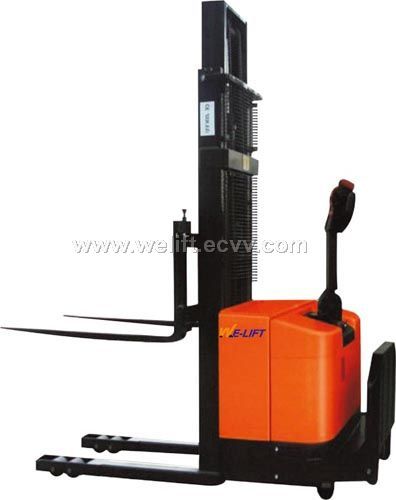

Full Electric Stacker-T series

Model WFES-T-1000 WFES-T-1500
Capacity kg 1000 1500
Lifting height mm 2000/2500/300 2000/2500/3000
Overall height mm 1580/1880/2150
Fork length mm 950-1070
Fork width mm 100-110
Min. Turning Radius mm 1668 1768
Wheel Base mm 1300 1388
Load center mm 500
Max. Lifting speed with/with out load m/min 3.2/6
Max. Traveling speed with/without load m/min 4.5/5.6
Battery V/AH 24/210
Lifting motor power kw 2.2
Traction motor kw 0.75/1
Out dia of the front wheel mm 80
Out dia of the rear wheel mm 160
Max. Lifting height mm 2475/2975/3475
Overall Lengh mm 2040
Handle height mm 1500
Self weight kg 720
Material Handing Equipment, Warehouse Equipment, Hand Pallet Truck, Lifting table, Manual Drum Stacker, Manual Stacker, Semi-Electric Stacker, Full Electric Stacker

Place of Origin:	Zhejiang Hangzhou in China
Model No:	WFES-T
Brand Name:	WE-LIFT
