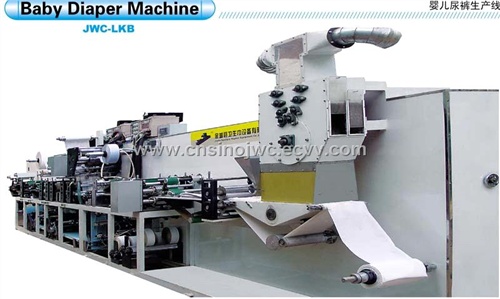

Baby Diaper Machine (JWC-LKB)

* Specifications:

Main Technical Parameters:

1. Type: JWC-LKB

2. Design output: 100-150 pieces / min

3. Installation capacity: 55 kw (380 V 50 Hz)

4. Overall dimension: 16.5 m * 1.9 m * 2.7 m (length * width * height)

5. Total weight: 18 T

6. Equipment specification: (length * width)

S 380 * 270 mm, M 450 * 310 mm

L 515 * 330 mm, XL 540 * 340 mm

* Advantages:

Optional Device:

1. Non-stop automatic and half-automatic material inception devices and tension control devices.

2. PLC which can help draw up working procedure.

3. Automatic position-limit adjusting device which can inspect quality, do calculation and reject wasters by using photo-electrical cells (Materials can be adjusted lengthways.).

4. Touchable screen with which you can communicate with the machine.

5. The thermal-sealing cutter box can be driven by cylinder.

6. Counter.

Ship Date: 60 days

Standard Met: ISO9001 CE
