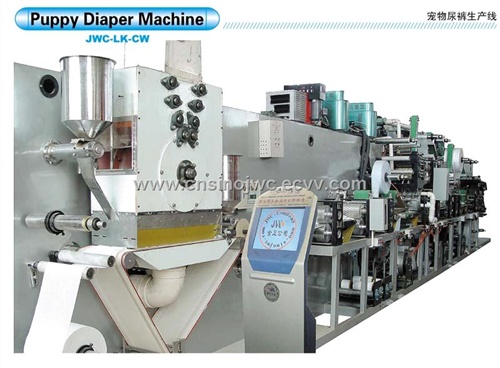

Puppy Diaper Machine (JWC-LK-CW)

Main functions and features:

1. The fluff adopts forming dram or aggregate pulp supply unit . The functions are complete. It can produce three types of puppy diapers (L, M, S) with a few parts changed.

2. It has waistband, frontal tape and side tape devices.

3. Both sides with leak proof cuffs. Material for stereo shield is cut and shaped by hot press on the equipment. It adheres to elastic ribbon to be formed for side leakage proof.

4. Main raw materials are used with unwound, tension control system.

5. After the side arcs are shaped, the wings will be three-folded lengthwise. The diaper pads will be output in line and easy for packing.

Main Technical Parameters:

1. Type: JWC-LK-CW

2. Design output: 100-130 pieces/min

3. Installation capacity: 60KW(380V 50Hz)

4. Overall dimension: 17m*2. 1m*2. 7m(length*width*height)

5. Total weight: 18. 5T

6. Product specification: (length*width) (as per your requirement)
