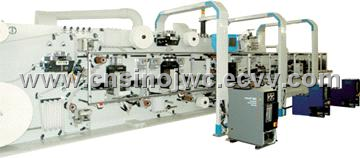

1. Machine Characteristics
1). Full servo motors driving, conveying accuracy is high.
2). Constant tension controlling, roller center unwinding by driving
3) High speed automatic changing rollers by connecting raw materials.
4). Air operated axis makes feeding easy.
5). Auto-rejecting wasting products.
6). Automatic web-guider
7). Touchable screen controlling platform, to provide the service between man and machine by pictures file.
8). Safeguard doors
9). Crosswise three folding
10). Quick-easy inner packing type
11). Side waste material staving system
Option Devices:
1). Dust collect and low noise pipe system
2）Attached use hot melt applicators of Nordson or ITW, which made in USA.
3) Sound proof cabin system for mill & fan
4) Textile edge applicator
2. Main technical parameters.
1). Designed speed 200/min
2). Running speed: 2000pcs/min
3). Qualified rate: 99.9 %( based on 7.5 hours, rate of qualified amount and total amount, excluding caused by glue applicators failure)
4).Efficiency: ≥98%( based on 7.5 hours, practical productivity and theory productivity)
5) Capacity: 120kw (including glue machine)
6). Electricity: 3 phases 4 lines 380v±5%, 50HZ (earth line)
7). The lowest air pressure: 6 kg/cm2
8). Total weight: about 25000 kg
9). Noise: <70db (A)
10).Main machine overall dimensions: 12 x2 x2.5M (LxWxH)
11).Machine taking total space: 15 x7x3.5M (LxWxH) (including outer attached equipment)
| Place of Origin: | Jiangsu in China |
| Model No: | JWC-hd2000 |
| Brand Name: | JWC |
