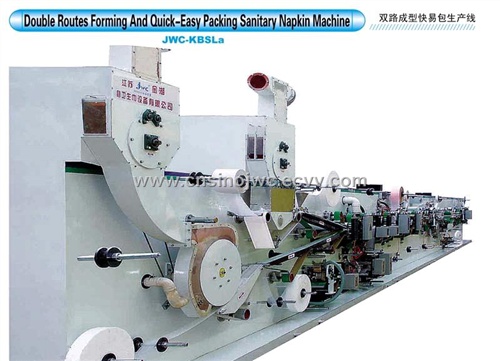

Sanitary Napkin Machine

Product Description
Main functions and features:
1. The equipment can produce napkins of three-piece type, leaking proof, ultra-thin (as thin as silk) medicinal type and regular type. During the producing process, it is not necessary to replace any part of the equipment.
2. Double route forming system with de-molding is adopted, using large and small cotton cores. The products are economic and pragmatically.
3. Each part of the equipment is mounted with differential device for phase correction during operation.
4. Press the flowing way before thermal sealing so that the flowing way of the product is visible and clear.
5. After revolving the direction, the products are corrected and conveyed in equidistance. The packing of products is trim.
6. In the slitting unit, a scrapping-cutting mode is adopted to minimize the impact load, which prolongs the lifetime of the cutter.

Main technical parameters:
1.Type: JWC-KBSLa
2.Overall dimensions:(21*2.7*3)M (L*W*H)
3.Working space:(23*4*4)m(L*W*H)
4.Total weight:18.5T
5.Power supply:380V 50Hz
6.Installation capacity:58.5KW
7.Air consumption:1000 Liter/min Air pressure:(8-10)Bars
8.Designed output:250 pieces/min
9.Economic output:(140-220) pieces/min
10.Product specification:(225-340) mm

Place of Origin:	Jiangsu in China
Model No:	JWC-KBSLA
Brand Name:	JWC
