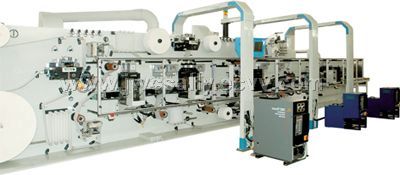

Full Servo Motor Driving Sanitary Pantyliner Machine

Full servo sanitary panty liner production line 1. Machine Characteristics 1). Full servo motors driving, conveying accuracy is high. 2). Constant tension controlling, roller center unwinding by driving 3) High speed automatic changing rollers by connecting raw materials. 4). Air operated axis makes feeding easy. 5). Auto-rejecting wasting products. 6). Automatic web-guider 7). Touchable screen controlling platform, to provide the service between man and machine by pictures file. 8). Safeguard doors 9). Crosswise three folding 10). Quick-easy inner packing type 11). Side waste material staving system Option Devices: 1). Dust collect and low noise pipe system 2)Attached use hot melt applicators of Nordson or ITW, which made in USA. 3) Sound proof cabin system for mill & fan 4) Textile edge applicator 2. Main technical parameters. 1). Designed speed 200/min 2). Running speed: 2000pcs/min 3). Qualified rate: 99.9 %( based on 7.5 hours, rate of qualified amount and total amount, excluding caused by glue applicators failure) 4).Efficiency: more than 98%( based on 7.5 hours, practical productivity and theory productivity) 5) Capacity: 120kw (including glue machine) 6). Electricity: 3 phases 4 lines 380v?%, 50HZ (earth line) 7). The lowest air pressure: 6 kg/cm2 8). Total weight: about 25000 kg 9). Noise: <70db (A) 10).Main machine overall dimensions: 12 x2 x2.5M (LxWxH) 11).Machine taking total space: 15 x7x3.5M (LxWxH) (including outer attached equipment) Equipment Configuration A Mechanical Parts 1. High-Pressure Absorbent Fan 2. Transfer Layer Flat Cutter 3. Following Guide Embossing Roller 4. Heat-sealing Embossing Roller 5. Arc Forming Cutter 6. Horizontal 3-folding 7. Quick-Easy Tape Flat Cutter 8. Individual Sealing Pressing Roller 9. Small Package Flat Cutter 10. Safety Protection Door B Electronic Parts 1. Hot-melt Glue Equipment Control System 2. Servo System 3. Power Supply Processing System 4. Auto Web-guider System 5. Gas Resource Processing System 6. Photo Cell Detecting Processing System 7. PID Temperature Control System 8. Fan Control System 9. Exhausting & Radiation System 10. Maintenance & Lighting System 11. Touchable Screen Operating System 12. Safety Protection Door Control System 13. Frequency Transformer Control System

Place of Origin:	Jiangsu in China
Model No:	JWC-HD2000-SV
Brand Name:	JWC
