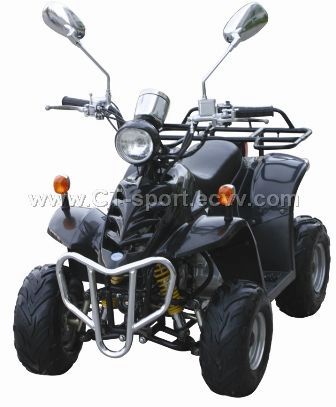

50cc ATV (CT-A506)

Ce, iso9001: 2000, vin

Eec no. :e13*2002/24*0084*01

Max speed above 40km/h

1>Dimension:(L*W*H): 1,230*730*850
2>Wheel base (mm): 830
3>Ground clearance (mm): 70
4>Max speed (km/h):>40
5>Max load:237.8kgs
6>Brake method(F/R):Double Drum / Disc
7>Tire size(F/R):145/70-6 / 145/70-6
8>Seat height(mm):575
9>Fuel capacity:3.5L

Engine type: 50cc,4-stroke, air-cooled, 1 cylinder,
1>BoreXStroke:39X41.4
2>Cylinder capacity:49cm3
3>Compression ratio:8.8:1
4>Max. power and speed:2.4/6000(kw/min-1)
5>Max. torque:4.4/4000(n.m/min-1)
6>Starting method:electric
7>Transmission:4-speed,Auto clutch,chain,420H
Carton dimensions:1,160*690*660mm
Conveyance:48pcs/20' ; 135pcs/40'HQ
COLOUR:blue, red,black,yellow,green
