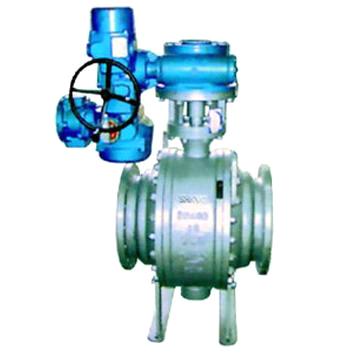

Casting steel 3PC trunnion ball valve

Detailed Product Description

Specifications:
1) Design standards: API 6D, API 608
2) Inspection and test standards: API 6D, API 598, API 607, API 6FA, JIS B2003
3) Face-to-face: ANSI 16.10 / API 6D, JIS B2002
4) Connection: ANSI B16.5, JIS B2212, JIS B2214
4) Flange: ANSI B16.5 / ANSI B16.47
5) Size: 2"- 40", full bore or reduced ball
6) Class: 150 - 2,500lb
7) Temperature: -29 ~ -330°C
8) Body / bonnet: WCB / WC6 / WC9 / LCB / CF3 / CF3M / 316 / 304 / A105
+ ENP / MONEL / H.C / TA3
9) Seat: 13% Cr + PTFE / 316 + PTFE
10) Ball: 304 / 316 / A105 + ENP
11) Stem: 13% / 316 / 304
12) Sealing: soft sealing or metal-to-metal seat, Viton-O-Ring and flexible
graphite
13) Operation: manual, pneumatic, electric, hydraulic and pneumatic-hydraulic
14) Appendix: double block and bleed valve; automatic relief of the cavity;
fire-safe, lock device, extended stem, blow-out proof stem, sealant injection
fittings, etc.
