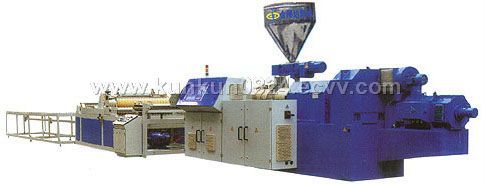

Plastic wave plate extrusion line

Plastic wave plate extrusion line
Product Introduction:
PVC wave plate production line consists of conical double screw extruder , molding machines (wave-style,tileedge-style),hauling-off unit,cutter and other auxiliary equipments
This line can produce U-PVC colorized plastic wave plates and red mud wave plates, etc.
Main Technical Data:
Extruder Model
SJ 65/132

Mould style
Clothes hanger flat style
Cooling mould size
1000mm
540mm
Hauling-off power
2.2KW(invert speed
Adjustor)

Molding unit

Cooling means
water
Cutting means
Shear cutting(pneumatic)

Big wave
R=15h=16.5 wave distance
Hauling-off speed
0.5-5m/min
Cutting following distance
500mm

Small wave
R=9h=8 wave distance36mm
Hauling -off length
1000mm
Working pressure
0.4-0.6Mpa

Place of Origin:	Shandong Qingdao in China
Model No:	SJSZ
Brand Name:	ROYAL
Minimum Order:	One Set
Delivery Time:	50
