truck crane

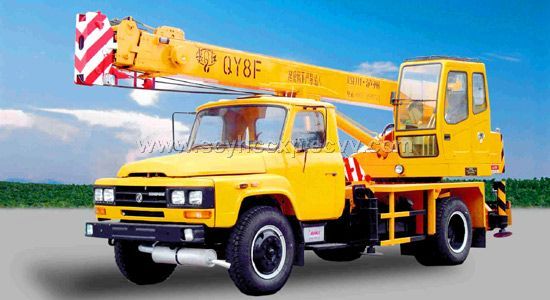

QY8F with 'Dongfeng' diesel engine and QY8C with 'Dongfeng' petrol engine are equipped with famous brand components and parts at home. Engine being of strong power and high traveling speed has been up to the state standard on environmental protection.
3-section main boom with rectangle profile.
The superstructure and the chassis have a double pump each. Telescopic boom mechanism. The 2nd and the 3rd section boom can realize synchronous telescoping by combining a single-stage
cylinder with a set of wire ropes.
Three-pivot arrangement makes the load distributing on telescopic boom, elevating cylinder and slewing table reasonably, which indicates special structure and beautiful shape of machine.
Hydraulic system: reasonable design, compact arrangement, high efficiency, reliability and safety with main hydraulic valves having advanced technology and convenient control.
Equipped with safety devices such as safety valve, buffer valve, height limiter and working radius indicator etc., ensuring the reliability in operating
Max. lifting capacity:8 (t)
Max. lifting height:17.3 (m)
Working radius:3.5-13(m)
Self-weight:9720 (kg)
Power of engine:105kw/2800rlmin

Place of Origin:	Sichuan Chengdu in China
Model No:	QY8F
