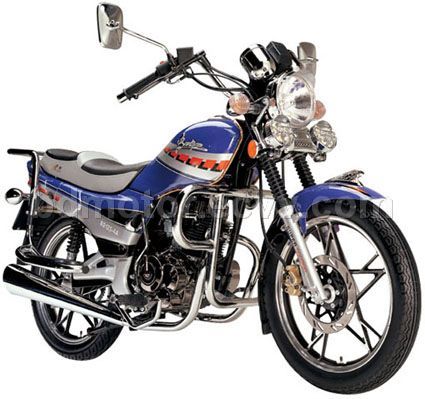

Motorcycle (BD125-4A)

Detailed Product Description

* 125cc or 150cc or 200cc

* Dimension (L*W*H)mm): 2060*820*1130

* Wheel base (mm): 1250

* Min. Ground Clearance (mm): 160

* Dry Weght: 115kg

* Maximum weight capacity: 150kg

* Engine Type: Single-cylinder, air-cooled, four-stroke

* Engine model: 156FMI

* Bore*Stroke: 56. 5mm*49. 5mm

* Displacement: 124. 0mL

* Maximum Power: 7. 2kW/rpm(9000+500 r/min)

* Maximum Torque: 8. 0N. M/rpm(7500-500r/min)

* Start: Electric start/Kick start

* Max. Speed (km/h): 85km/h

* Fuel tank Maximum capacity: 13L

* Economical Fuel Consumption (l/100km): 2. 1L /100km

* Front Type Size and Air Pressure: 2. 75-18/200KPa

* Rear Type Size and Air Pressure: 3. 00-18/225Kpa

* Front brake type: disk type

* Rear brake type: drum type

Place of Origin:China|
Model No:BD125-4A
Brand Name:Baodiao
